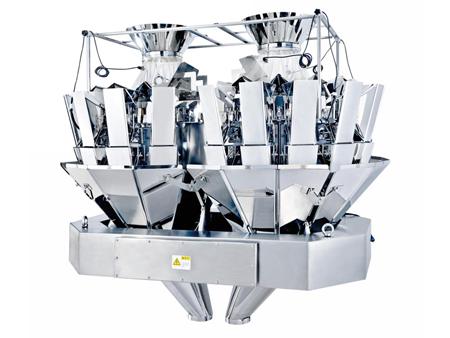

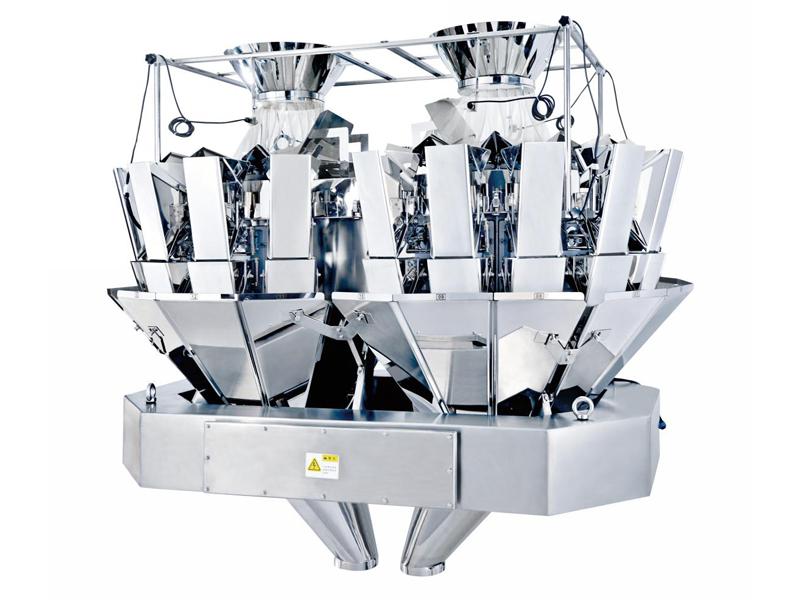

20 Head Multihead Weigher

The 20 head multihead weigher has the ability to simultaneously weigh four different materials making it applicable for blended packaging of granular, sheet, strip and irregular products like candy, potato chips, jelly, boiled dumplings, nuts and so on. The target weight can be freely adjusted, offering customers a versatile machine for packaging of different items.

• Model: MK-A20-1-1
• Weighing range: 2-600g*4
• Weighing accuracy: ±0.5-3g
• Max speed: 60bags/min
• Bucket volume: 3000ml
• Drive model: stepper motor
• Controller: 7 inch touch screen
• Power: 220V/2500W/50 60HZ/15A
• Size: L1300*W1360*H1100
• Weight: 600kg

• The touch screen for a human to computer interface control system is easy and convenient to operate.
• Several related hoppers for target weight can be set in a successive filling mode to efficiently solve loose material clogging problems.
• Using a computer algorithm, the perfect combination for the target weight is quickly obtained from numerous combinations.
