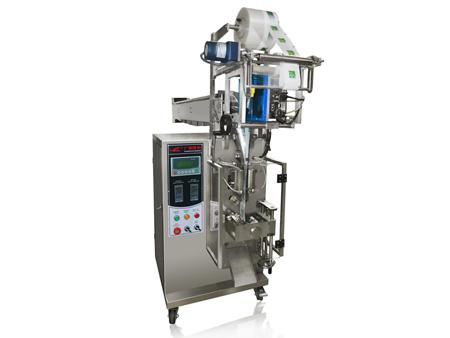

Vertical Form Fill Seal Machine, MK-60HB Packaging Machine

The MK-60HB vertical form fill seal machine is specially designed for the packaging of irregular products like jelly, potato chips, etc. Manual operation is adopted to feed materials to the infeed conveyor. This packaging machine can effectively package the materials difficult to handle automatically.
Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag styles

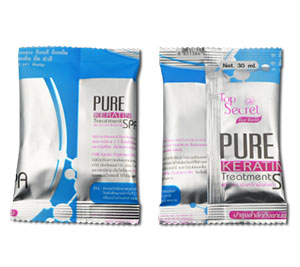

  • Back seam bagBack seam bag

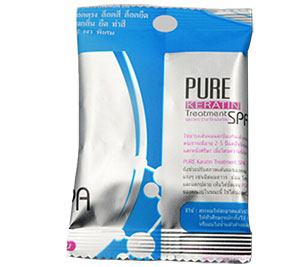

  • Round hang hole pouch Round hang hole pouch

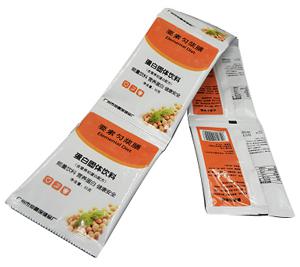

  • Strip sachetsStrip sachets
Parameters
  • Type: MK-60HB
  • Infeed conveyor length: ≤1.5m (customizable for other sizes)
  • Packing speed: 30-60bags/min
  • Bag size: L:40-160mm W:40-100mm
  • Max film width: 220mm
  • Sealing type: central seal
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 230kg
  • Overall size: 1800x800x1600mm

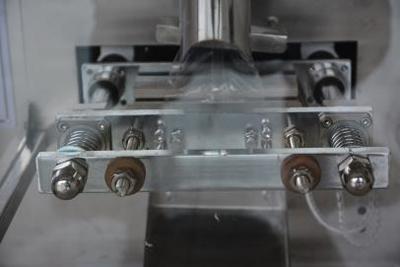

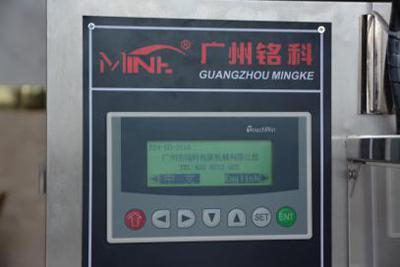

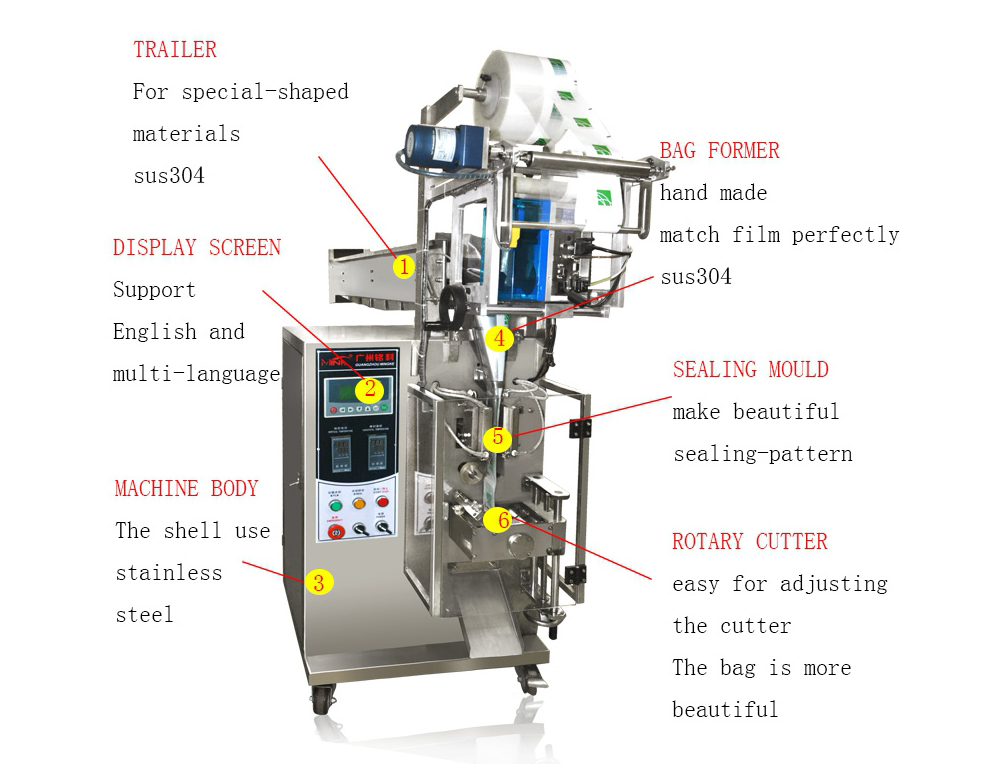

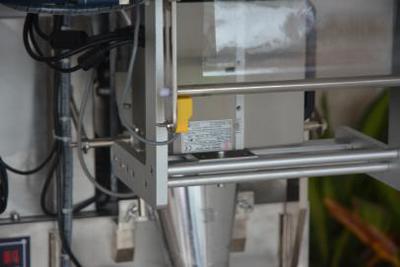

Structural and detail drawings
Additional Options

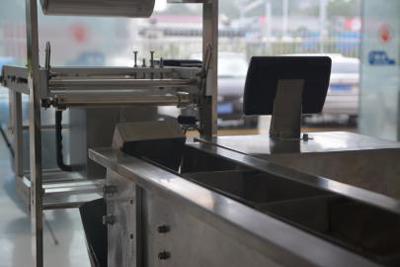

  • Packaging line feeder
  • Finished package conveyor
  • Ribbon printer
  • Thermal Transfer Printer
