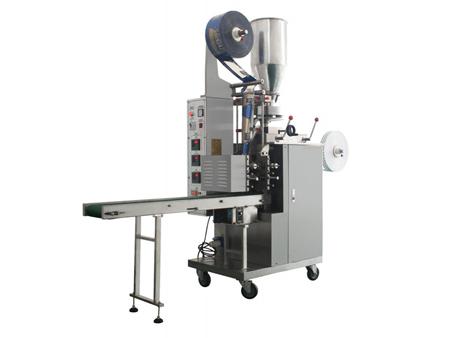

Vertical Form Fill Seal Machine, MK-T20 Tea Bag Packaging Equipment

The MK-T20 vertical form fill seal machine features an additional function for pasting tags on the tea bag, making it ideal for the packaging of tea bags with string and paper labels. It is an automatic machine for the sachet packing of broken tea, coffee, plants and similar products. The tea bag and tag are formed at simultaneously in order to prevent direct contact between operators and materials, thus ensuring a safe, hygienic performance.
Packaging materials

Filter paper, cotton string, paper label (plastic-coated paper)

Bag styles
  • 3 side seal tea bag with an attached piece of string with a paper label3 side seal tea bag with an attached piece of string with a paper label
Parameters
  • Type: MK-T20
  • Bag size: W(45-80)
  • Label size: W:22-28mm, L:23-28mm
  • Packing speed: 30-60bags/min
  • Measuring range: 3-10ml (about 1-5g fannings)
  • Power source: 220V, 50Hz, 1.6Kw
  • Weight: 350kg
  • Overall size: (L)1900×(W)950×(H)1800mm

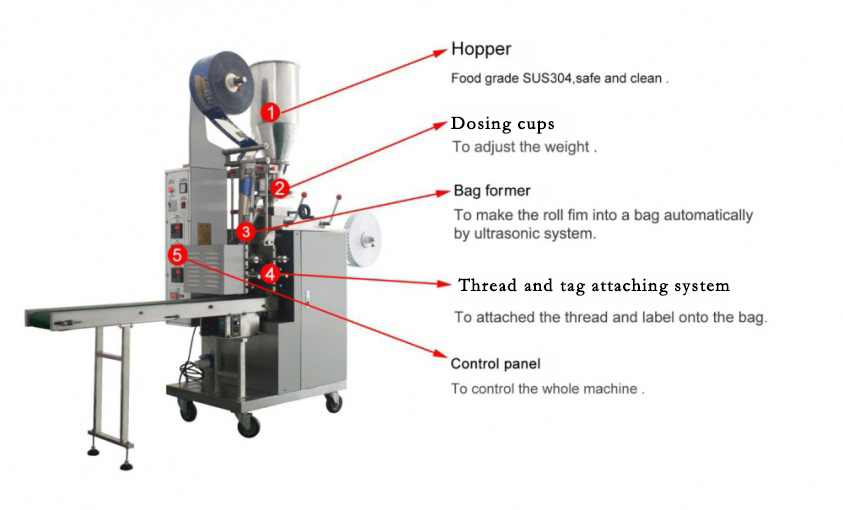

Structural drawing
Additional Options
  • Packaging Line Feeder
Other Vertical Form Fill Seal Machine
