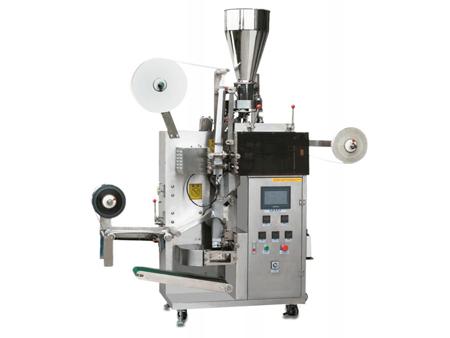

Vertical Form Fill Seal Machine, MK-T80 Bagging and Packaging Machine

The MK-T80 vertical form fill seal machine is able to carry out simultaneous packaging of tea bags and outer envelopes, thus improving the packaging process and efficiency. This packaging machine is ideal for packaging tea, herbs, and coffee in both a tea bag and outer envelope.
Bag styles

The inner tea bag is made of cotton filter paper with an optional string and label pasting, and the outer bag is made of a composite paper.

  • Vertical Form Fill Seal Machine, MK-T80
  • Vertical Form Fill Seal Machine, MK-T80
Parameters
  • Packing speed: 30-50bags/min
  • Filling range: 1-7g/bag
  • Tea bag size: L 50—75mm; W 50—75mm
  • Outer envelope size: L 85—120mm; W 75—95mm
  • Power source: 220V/50HZ single phase
  • Power: 3.7kw
  • Weight: 500KG
  • Overall size: 1050X700X1300 (L*W*H mm)

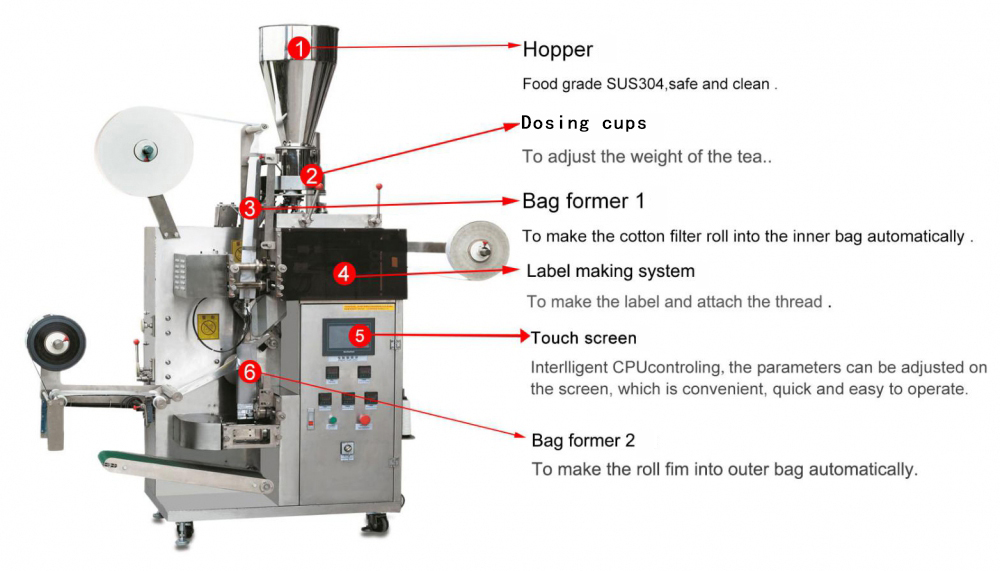

Structural and detail drawings
Additional Options
  • Packaging line feeder
  • Ink Printer
