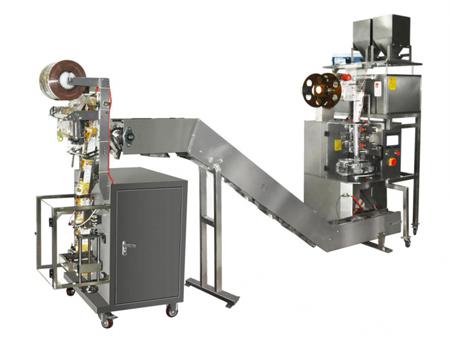

Vertical Form Fill Seal Machine, MK-SJB02 Bagging and Packing Machine

The MK-SJB02 vertical form fill seal machine consists of a tea bag former and outer envelope former for the packaging of tea bags and outer envelope. It carries out automatic feeding, weighing, bag forming, sealing, cutting, counting and finished package conveying, as well as outer envelope forming. The MK-SJB02 packaging machine is suitable for tea bag and outer envelope sealing of green tea, black tea, coffee, and more.
Packaging materials

Tea bag: nylon filter cloth, non-woven fabrics, zein fiber
Outer envelope: OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil

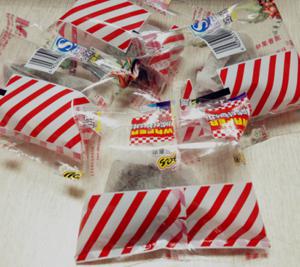

Bag styles
Parameters
  • Tea bag packaging machine
  • Weighing system: dual head electronic scale
  • Bag Size: (W)60-80, (L)40-80
  • Packing speed: 20-30 bags/min
  • Weighing range: 1-7g
  • Power supply: 220V/2KW
  • Air consumption: 0.6m3/min,0.8mpa
  • Net weight: about 400kg
  • Overall size: 1200*920*2060mm
  • Outer envelope packaging machine:
  • Packing speed: 30-60bag/min
  • Measuring Scope: 1-120ml（TBA）
  • Bag Size: (L)40-200, (W)40-100mm
  • Max Film Width: 220mm
  • Sealing type: Back seal
  • Net weight: 220kg
  • Power supply: 220V/50-60HZ, 380V/50HZ, 1350W
  • Packing Material: paper/PE, Polyester/aluminum foil/PE, nylon/polyethylene, tea filter paper, etc.
  • Overall size: L800×W800×H1650mm

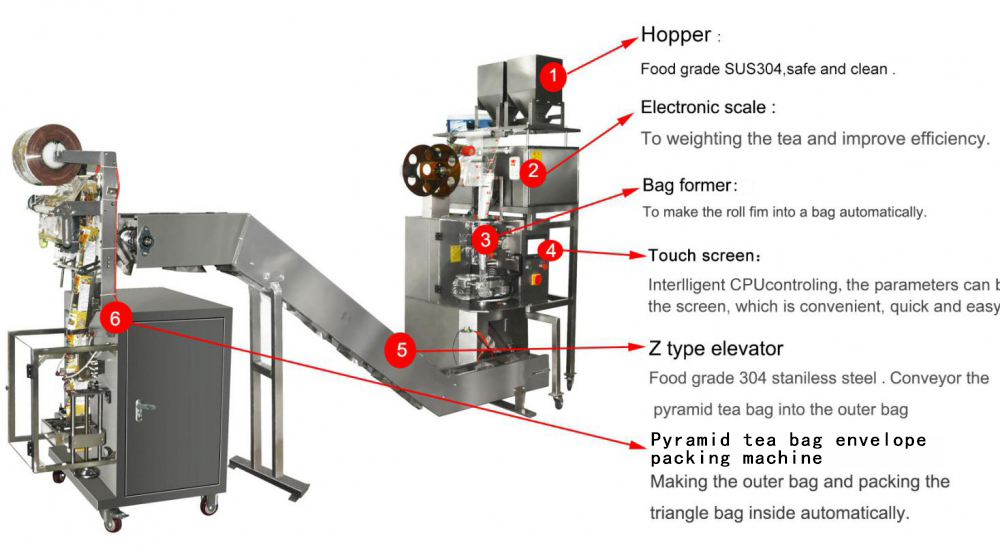

Structural drawing

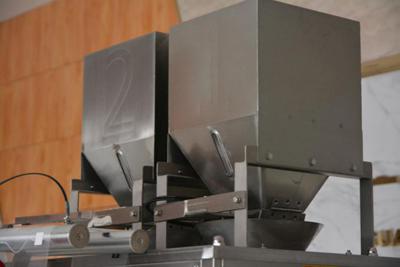

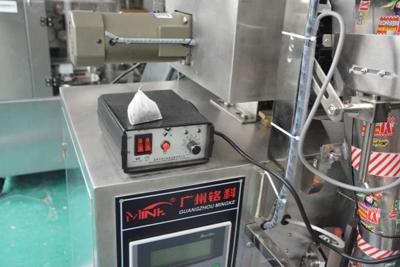

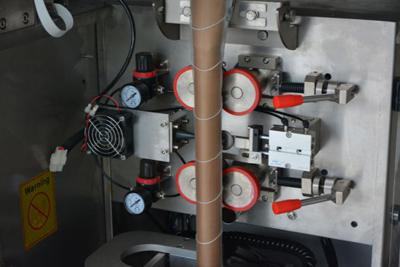

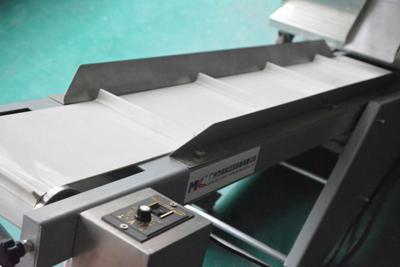

Structural and detail drawings
