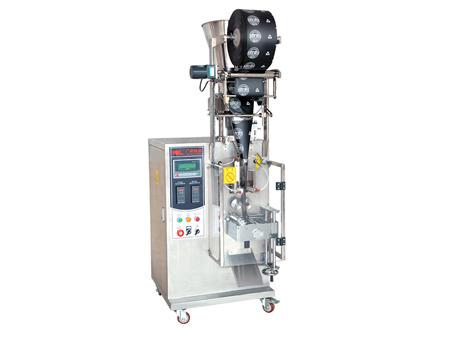

Vertical Form Fill Seal Machine, MK-60KZ Packaging Machine

The MK-60KZ Vertical form fill seal machine automatically performs bag forming, filling the bag with product, weighing, sealing, bag cutting, counting, code printing, finished package discharging, etc. Using s measuring glass for weighing, this packaging machine suits the wrapping of uniform, loose, non-viscous, fine granules.
Packaging bag materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag styles
  • 3-side seal bag3-side seal bag
  • 4-side seal bag 4-side seal bag
  • Hang hole bagHang hole bag
  • Round hang hole bag Strip sachets
Parameters
  • Type: MK-60KZ
  • Packing speed: 30-60bags/min
  • Bag size: L:40-160mm W:20-110mm

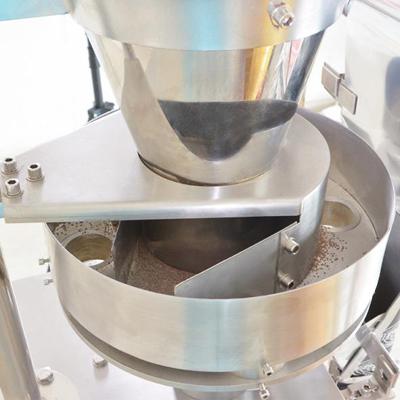

  • Measuring range: 1-80ml (optional screw feeder depending on the packaging products)
  • Max film width: 220mm
  • Sealing type: 3 side seal or 4 side seal
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 220kg
  • Overall size: 800x700x1600mm

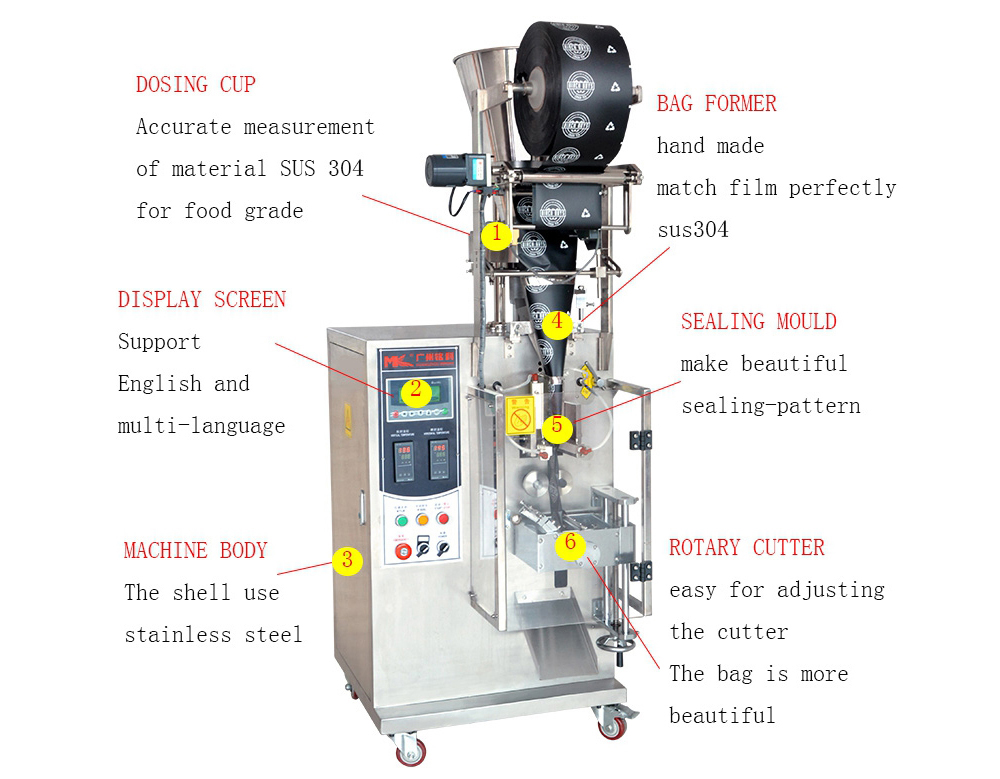

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Ribbon printer
  • Thermal transfer printer
