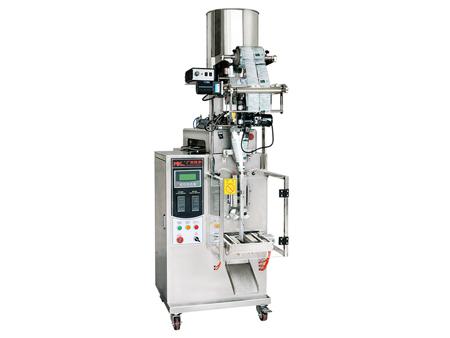

Vertical Form Fill Seal Machine, MK-60YZ

Vertical Form Fill Seal Machine, MK-60YZ Packaging Machine

The MK-60YZ vertical form fill seal machine has a liquid filler for weighing. It is ideal for the automatic packaging of liquid, pasty liquid and substances like honey, tomato sauce, shampoo, body wash, face cream, etc. MK-60YZ packaging machine is available in bag styles of 3 side seal and 4 side seal, with add-ons of hang hole or strip sachets

Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag styles

3 side seal
4 side seal
Round hang hole pouch
Strip sachets

Parameters

Type: MK-60YZ
Packing speed: 30-60bags/min
Bag size: L:40-140mm W:30-110mm
Measuring range: 1-70ml
Max film width: 220mm
Sealing type: 3 side seal or 4 side seal
Power source: 1200W/ 220V、380V/ 50-60Hz
Weight: 250kg
Overall size: 800x700x1600mm

Features

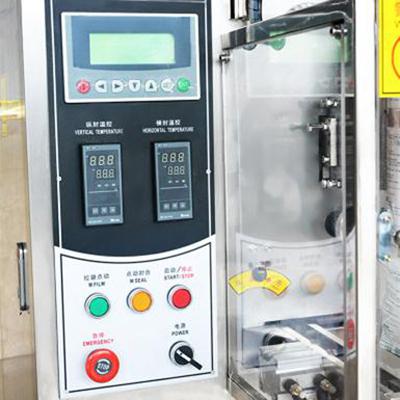

Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.

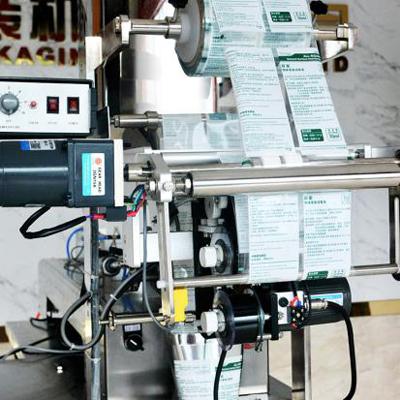

High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mould is equipped to ensure firm sealing.
With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.

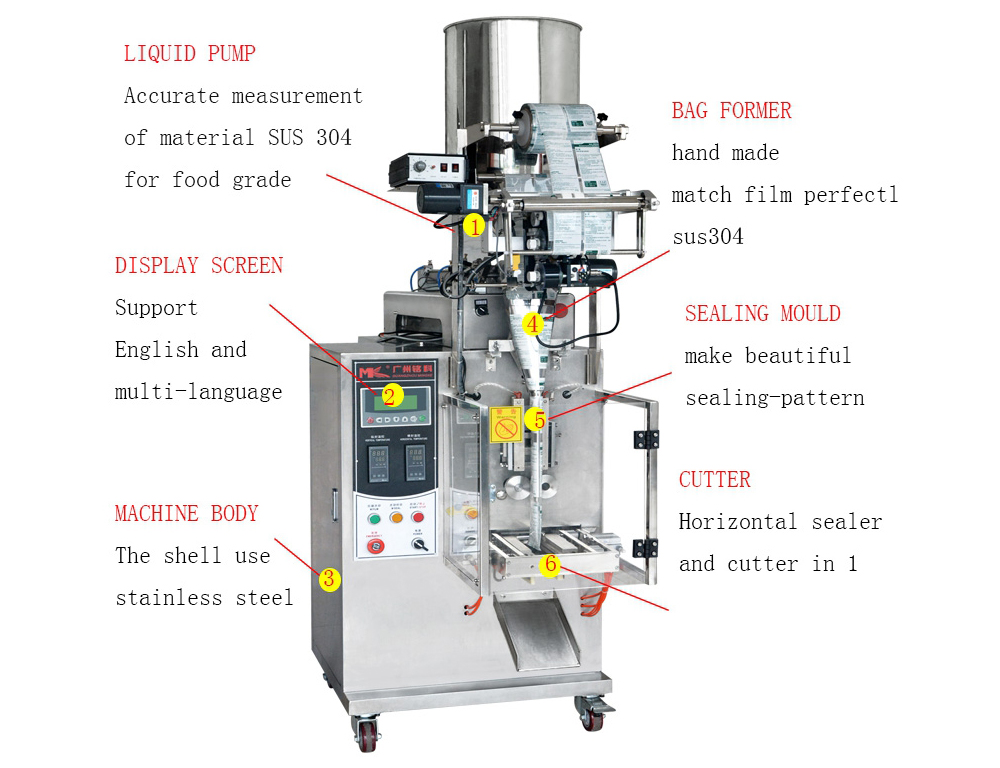

Structural drawing

Additional Options

Packaging line feeder
Finished package conveyor
Ribbon printer
Thermal transfer printer
