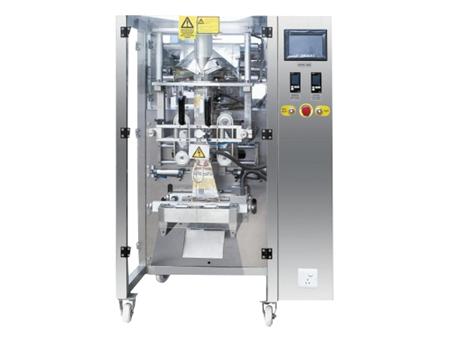

Vertical Form Fill Seal Bagger

The vertical form fill seal bagger is capable of forming heat sealable film into bags. By integrating with the multihead weigher, linear weigher, auger filler or liquid filler, different packaging systems are utilized to package materials in different forms.
Packaging bag materials

OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.

Packaging bag styles
  • Flow pack wrappingFlow pack wrapping
  • Hang hole bagHang hole bag
  • Gusset bagGusset bag
Parameters
Type MK-420 MK-520 MK-620 MK-720
Packing speed 10-80bags/min 10-70bags/min 10-50bags/min 10-50bags/min
Bag size L:50-300mm W:80-200mm L:80-350mm W:90-250mm L:90-400mm W:100-300mm L:100-420mm W:110-350mm
Measuring range 150-1500ml 2000ml 3000ml 4000ml
Max film width 420mm 520mm 620mm 720mm
Film thickness 0.04-0.10mm 0.04-0.10mm 0.04-0.10mm 0.04-0.10mm
Air consumption 0.4m³、min 0.6MPa 0.4m³、min 0.6MPa 0.8m³、min 0.8MPa 0.8m³、min 0.8MPa
Power source 2.5KW/220V 50-60Hz 3KW/220V 50-60Hz 4KW/220V 50-60Hz 4KW/220V 50-60Hz
Weight 450kg 650kg 800kg 800kg
Overall size 1400x970x1700mm 1430x1200x1700mm 1780x1350x2000mm 1780x1350x2000mm
Weigher options
  • Multihead weigher: adaptable to a wide range of granular, sheet, strip and irregular items such as candy, potato chip, jelly, boiled dumplings, nuts and so on.
  • Linear weigher: ideal for fine uniform granules like seeds, white sugar, washing powder, etc.
  • Auger filler: applicable to the packaging of powdered products with a mesh below 100, including milk powder, bean powder, albumen powder, ground coffee, flour, etc.
  • Measuring glass: suitable for uniform fine granules such as fodder, salt, white sugar, desiccant and so on.
  • Liquid filler: applicable to the packaging of liquid, pasty liquid and sauce like liquid shampoo, wash body, face cream, tomato sauce, honey, etc.

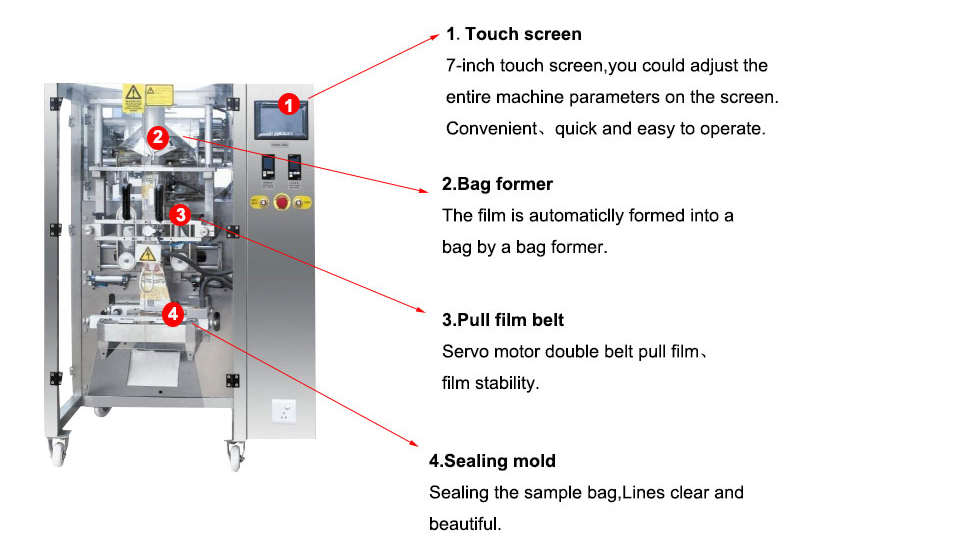

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Weight checker
  • Metal detector
  • Ribbon printer
