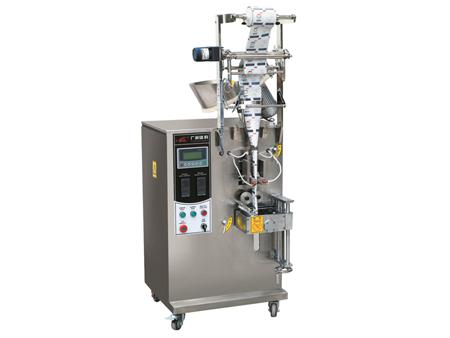

Vertical Form Fill Seal Machine, MK-60PZ Weighing Packaging Equipment

The MK-60PZ Vertical form fill seal machine offers bag options 3 side seal or 4 side seal. With the adoption of tablet plate as weighing device, this weighing packing equipment is suitable for automatically packaging uniform wafer and granular items like candy, tablets, and so on.
Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag styles
  • 3-side seal bag3-side seal bag
  • 4-side seal bag 4-side seal bag
  • Hang hole bagHang hole bag
  • Round hang hole bag Strip sachets
Parameters
  • Type: MK-60PZ
  • Packing speed: 20-60bags/min
  • Bag size: L:40-160mm W:30-110mm
  • Measuring range: 1-300pcs (according packaging material)
  • Max film width: 220mm
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 230kg
  • Overall size: 800x700x1600mm
Features
  • Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.
  • High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
  • Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mould is equipped to ensure firm sealing.
  • With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.

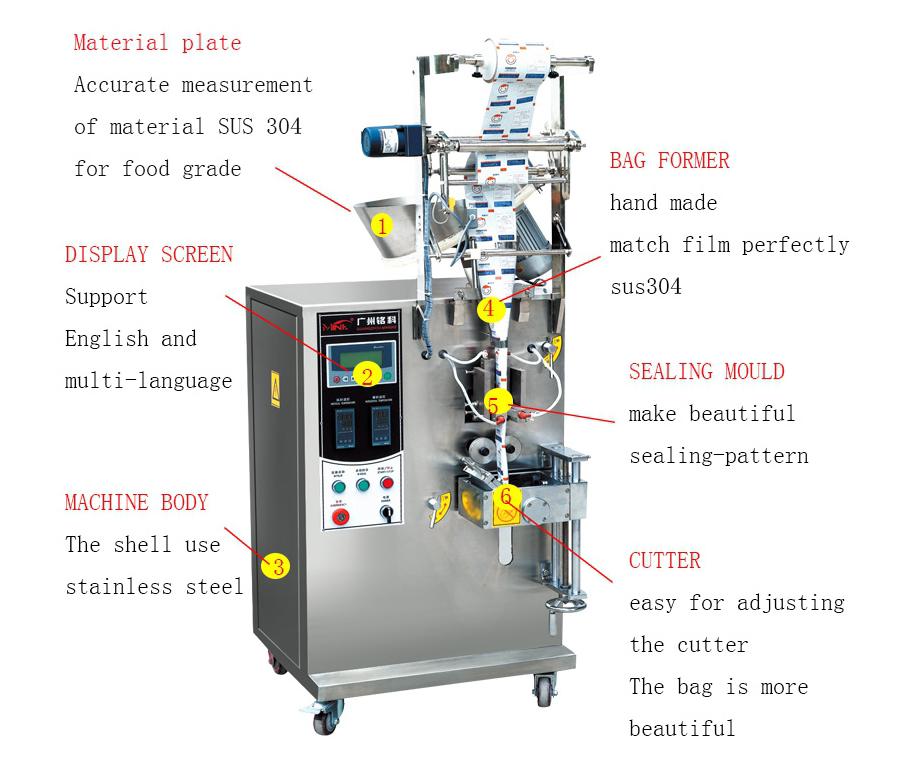

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Weight checker
  • Metal detector
  • Ribbon printer
