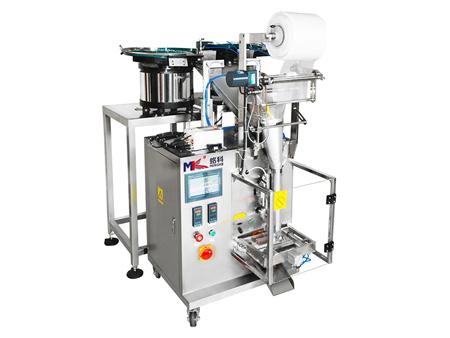

Vertical Form Fill Seal Machine, MK-LS2 Counting Packaging Machinery

The MK-LS2 vertical form fill seal machine has two vibration bowl feeders, allowing for mixed counting packaging of two different material. This packaging machinery is most often used for mixed packaging of hardware fittings and plastic parts.
Packaging materials

OPP/CPP、PET/PE and other heat sealable film, PE film

Bag styles

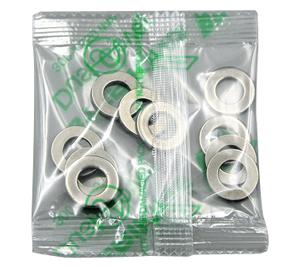

  • Back seam bagBack seam bag

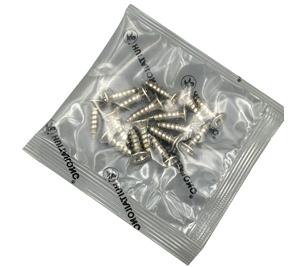

  • 3-side seal3-side seal
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS2
  • Max film width: 240mm
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 2000W
  • Packing speed: 5-50bags/min (depending on packaging products)
  • Bag size: L:40-160mm W:20-110mm
  • Film thickness: 0.04-0.08mm
  • Air consumption: 0.4m³/min 0.4-0.6MPa
  • Weight: 350kg
  • Overall size: 1000x1100x1700mm

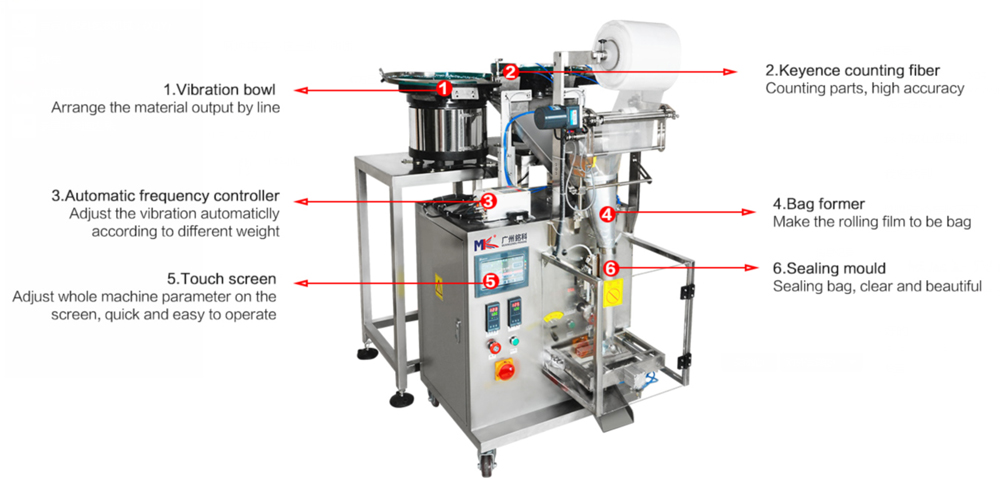

Structural and detail drawings
Weighing options
  • Vibration bowl feeder + slideway: for packaging screw within 5 pieces or hanging materials, adopting travel counting.
  • Vibration bowl + transverse feeding slideway + counting fiber: is ideal for counting screws with large quantity or the suspensible items.
  • Vibration bowl + counting fiber: suit to the counting of hardware or plastic parts without screw cap or non-hanging or the irregular products.
 Additional Options
  • Storage hopper: store materials and fill them into the vibration bowl slightly to make the materials in the bowl maintained uniform.
  • Finished package conveyor: convey the finished packages to the downstream weight checker or support platform.
  • Weight checker: Inspecting or weighing the materials, automatic counting, automatic rejecting unqualified products.
  • Printer: Imprint date, LOGO and QR code on the packaging bags.
