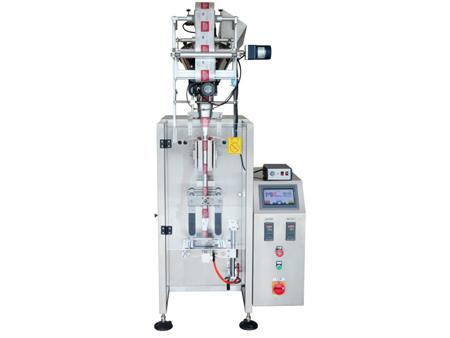

Vertical Form Fill Seal Machine, MK-60FXR Packaging Equipment

The MK-60FXR vertical form fill seal machine adopts a touch screen control system for automatic optimal matching of various operations after setting the fill product weight and bag length, realizing optimized packaging speed. Controlled by servo motor, this packaging equipment allows for more accurate film pulling and produces more eye-appealing packages. MK-60FXR packaging equipment is suited for packaging milk powder, bean flour, albumen powder, coffee powder, flour and so on.
Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, aluminum foil, etc.

Bag styles
  • Round corner back seam bagRound corner back seam bag
  • R shape corner seal bagR shape corner seal bag
Parameters
  • Type: MK-60FXR
  • Packing speed: 30-60bags/min
  • Bag size: L:40-160mm W:30-110mm
  • Measuring range: 0.5-80ml (optional screw feeder depending on the packaging products)
  • Max film width: 240mm
  • Sealing type: back seal (round corner)
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 280kg
  • Overall size: 800x700x1800mm

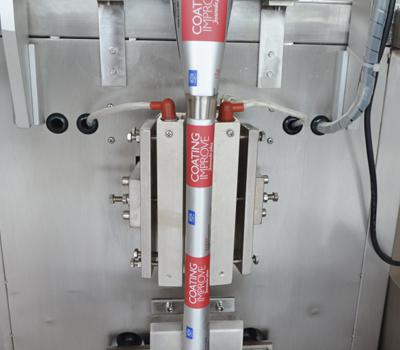

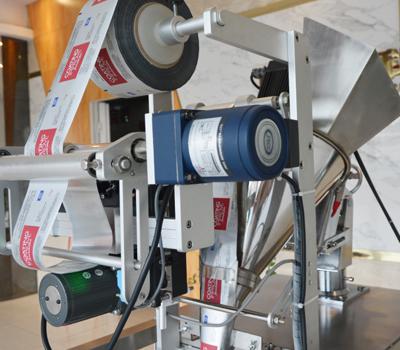

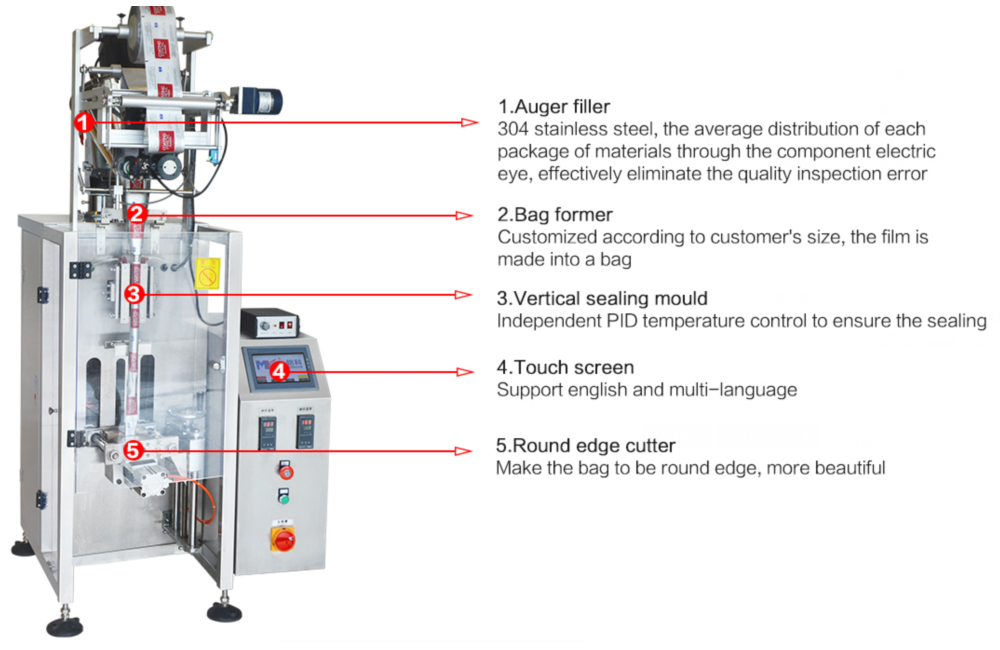

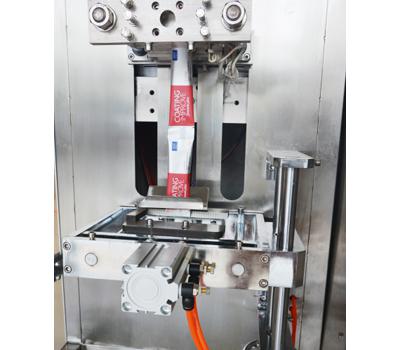

Structural and detail drawings
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Ribbon printer
  • Thermal transfer printer
