Horizontal Flow Wrapper, MK-250 type Wrapping Machine

  • Horizontal Flow Wrapper, MK-250B type
  • Horizontal Flow Wrapper, MK-250X type

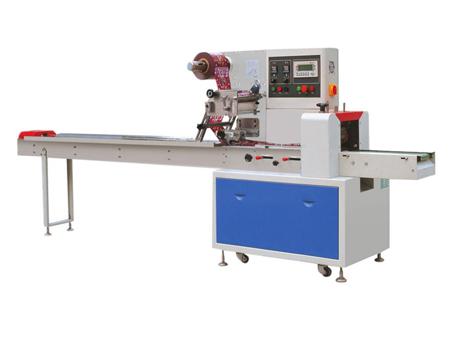

Mingke Pack offers two types of horizontal flow wrappers: the MK-250B and MK-250X, both of which are semi-automatic, continuous packaging machines. The difference lies in the position of the film reel, as it lays separately in the top and bottom of the transverse sealing jaw. This also decides applicable packaging materials.

The MK-250B horizontal flow wrapper’s packaging film reel is mounted on the top of the transverse sealing jaw to manage regular products like bread, chocolate and more.

The MK-250X horizontal flow wrapper features a bottom film feeding mode, making it applicable for packaging loose materials, including disposable tableware, cotton swabs, hardware fittings and more.

Bag materials

OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.

Bag styles
Horizontal Flow Wrapper, MK-250 type
Horizontal Flow Wrapper, MK-250 type
Parameters
Type MK-250B/X
Packing speed 40-230bag/min
Bag size L: 65-190mm or 120-280mm, W:30-110mm
Max film width 250mm
Product Height Max.40mm
Film Roll Diameter Max.320mm
Power source 220V,50/60HZ,2.4Kw
Weight 450kg
Overall size (L)3770×(W)670×(H)450mm
Additional Options
  • Ink Printer
