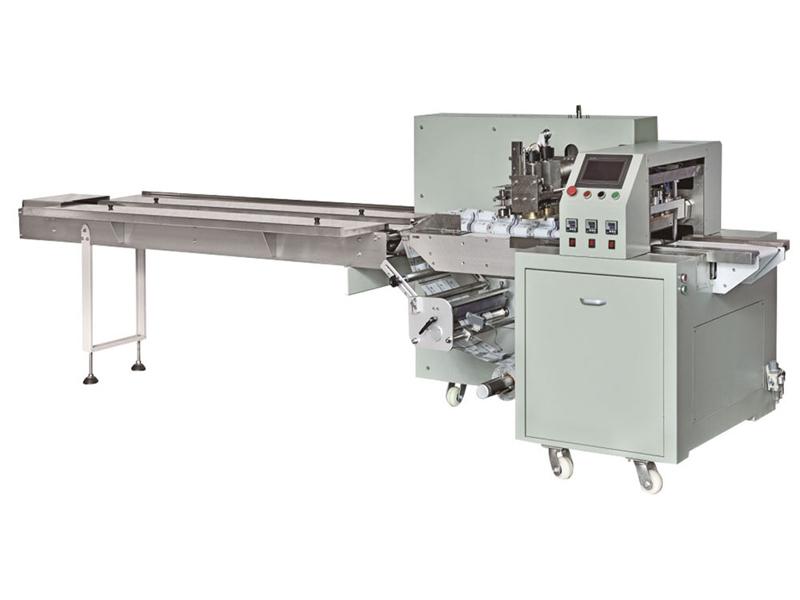

Flow Pack Wrapping Machine, MK-450XWS

The MK-450XWS flow pack wrapping machine is ideal for a variety of heat-sealable packaging films, with a maximum film width of 450mm. It is designed for packaging regular products like biscuits, soap, instant noodles, and more.

Bag materials

OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.

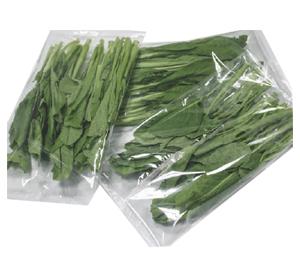

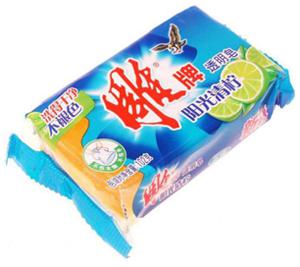

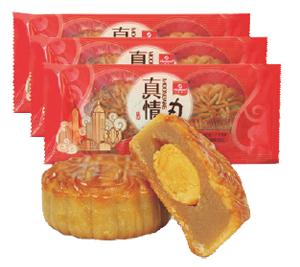

Bag styles
  • Flow Pack Wrapping Machine, MK-450XWS
  • Flow Pack Wrapping Machine, MK-450XWS
  • Flow Pack Wrapping Machine, MK-450XWS
  • Flow Pack Wrapping Machine, MK-450XWS
Parameters
  • Type: MK-450XWS
  • Max film width: 450mm
  • Film thickness: 25-80um
  • Bag size: L(60-6000)xW(25-215)xH(10-90)mm
  • Packing speed: 10-60bag/min
  • Film Roll Diameter: max outer diameter; 300mm, max inner diameter 75mm
  • Power source: 220V, 50HZ, 4Kw
  • Weight: 960kg
  • Overall size: (L)4200×(W)1000×(H)1300mm

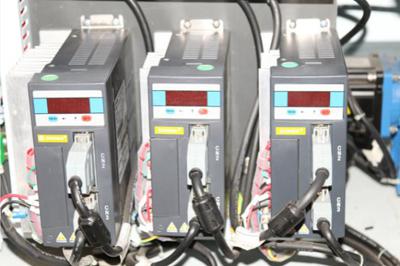

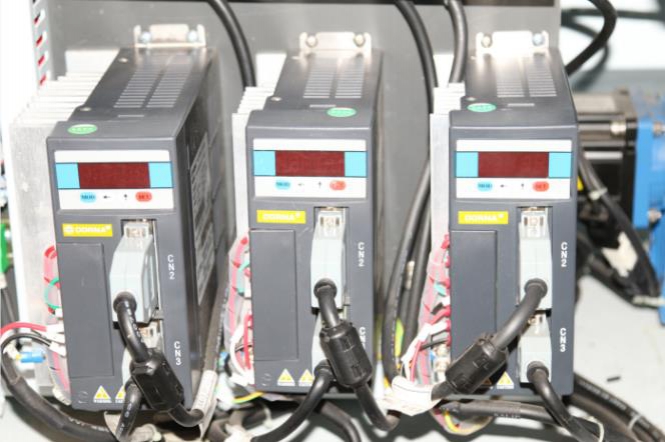

  • Motor: full servo
  • Film feeding: bottom feeding

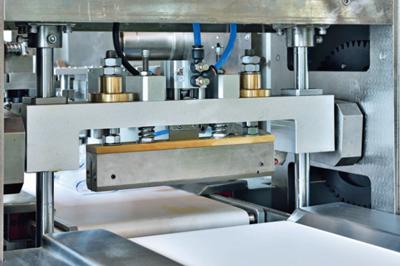

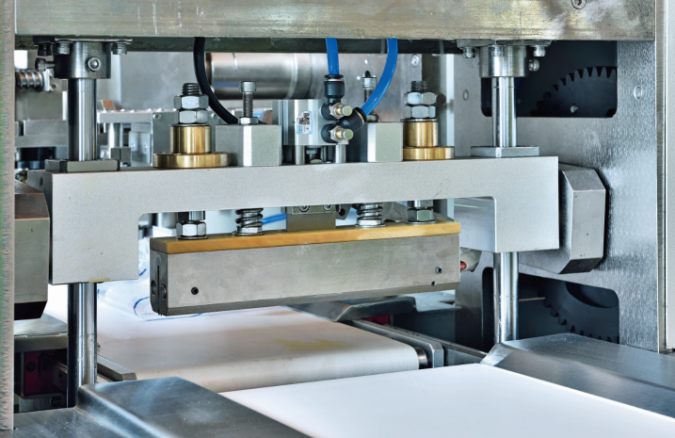

  • Knife: reciprocating

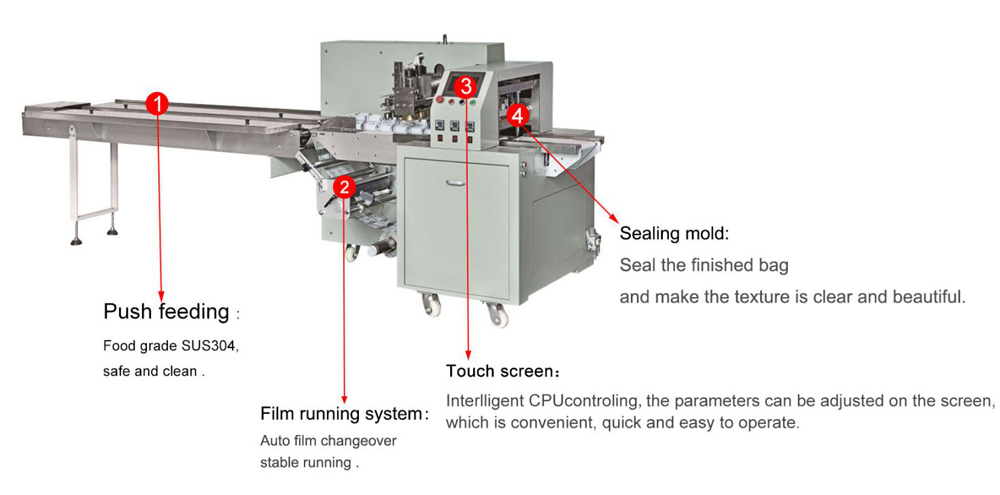

Structural drawing
Additional Options
  • Ink Printer
