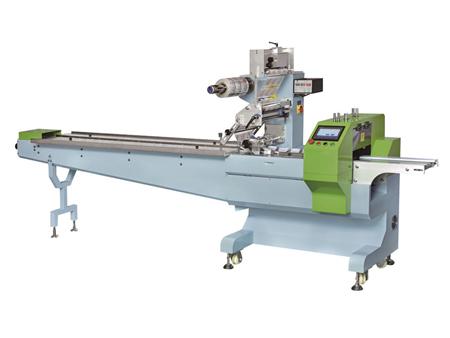

Precision Flow Pack Wrapper, Servo Motor MK-300S series Package Machinery

The servo motor in the MK-300S series precisionflow pack wrapper ensures this is a semi-automatic continuous packaging equipment, and is applicable to packaging bread, biscuits, instant noodles and other regular items. This wrapper features an adjustable packaging length according to the items that need to be packaged, and the servo motor ensures an exceptionally high accuracy. The independently controlled PID temperature is also suitable for a large range of packaging materials.

Bag materials

OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.

Bag styles
  • Precision Flow Pack Wrapper, Servo Motor MK-300S series
  • Precision Flow Pack Wrapper, Servo Motor MK-300S series
  • Precision Flow Pack Wrapper, Servo Motor MK-300S series
  • Precision Flow Pack Wrapper, Servo Motor MK-300S series
Parameters
  • Type: MK-300S
  • Max film width: 300mm
  • Film thickness: 25-80um
  • Bag size: L(50-6000)x W(50-140)x H(3-60)mm
  • Packing Speed: 10-100bag/min
  • Dual cutter bag size: L(50-200)x W(50-140)x H(3-55)mm
  • Dual cutter packing speed：20-200bag/min
  • Film Roll Diameter: max outer diameter; 300mm, max inner diameter 75mm
  • Power source: 220V,50HZ,3Kw
  • Weight: 600kg
  • Overall size: (L)3900×(W)850×(H)1500mm
  • Motor: dual servo/full servo

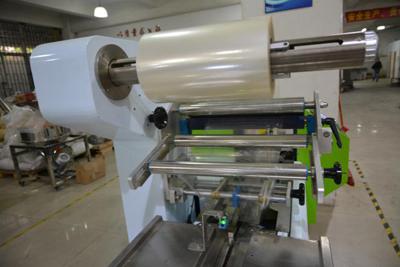

  • Film feeding: top feeding
  • Knife: rotary

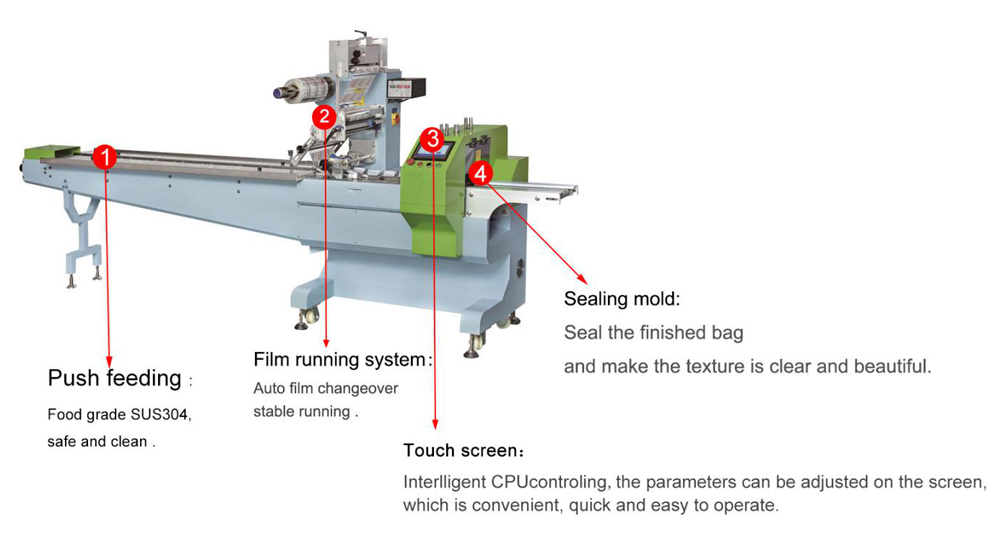

Structural drawing
Additional Options
  • Ink Printer
