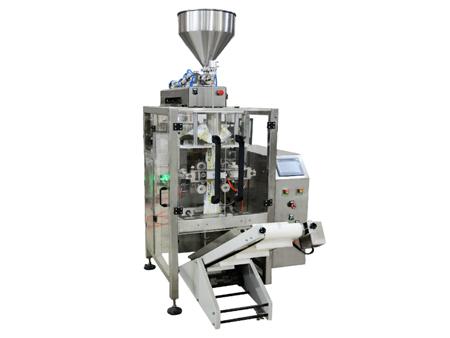

Type MK-420Y Auto Vertical Form Fill Seal Machine for Sticky or Wet Products

The Type MK-420Y auto vertical form fill seal machine for sticky or wet products is a fully automatic packaging system made up of a vertical bagger, liquid bucket and liquid pump. This packaging machine is specially designed to handle sticky or wet products, such as liquid shampoo, face cream, grease, sauce, honey, milk and so on.
Packaging materials

OPP/CPP composite film, OPP/CE composite film, MST/P composite film, PET/PE composite film, aluminum foil

Bag styles
  • Flow pack wrappingFlow pack wrapping
  • Hang hole bagHang hole bag
  • Gusset bagGusset bag
Parameters
  • Type: MK-420Y
  • Packing speed: 5-60bags/min
  • Bag size: L:50-300mm W:80-200mm
  • Measuring range: 150-1200ml
  • Max film width: 420mm
  • Film thickness: 0.04-0.10mm
  • Air consumption: 0.4m³、min 0.6MPa
  • Power source: 2.02KW/220V 50-60Hz
  • Weight: 500kg
  • Overall size: L1080xW1300xH1400mm
Features
  • Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.
  • High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
  • Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mold is equipped to ensure firm sealing.
  • With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.

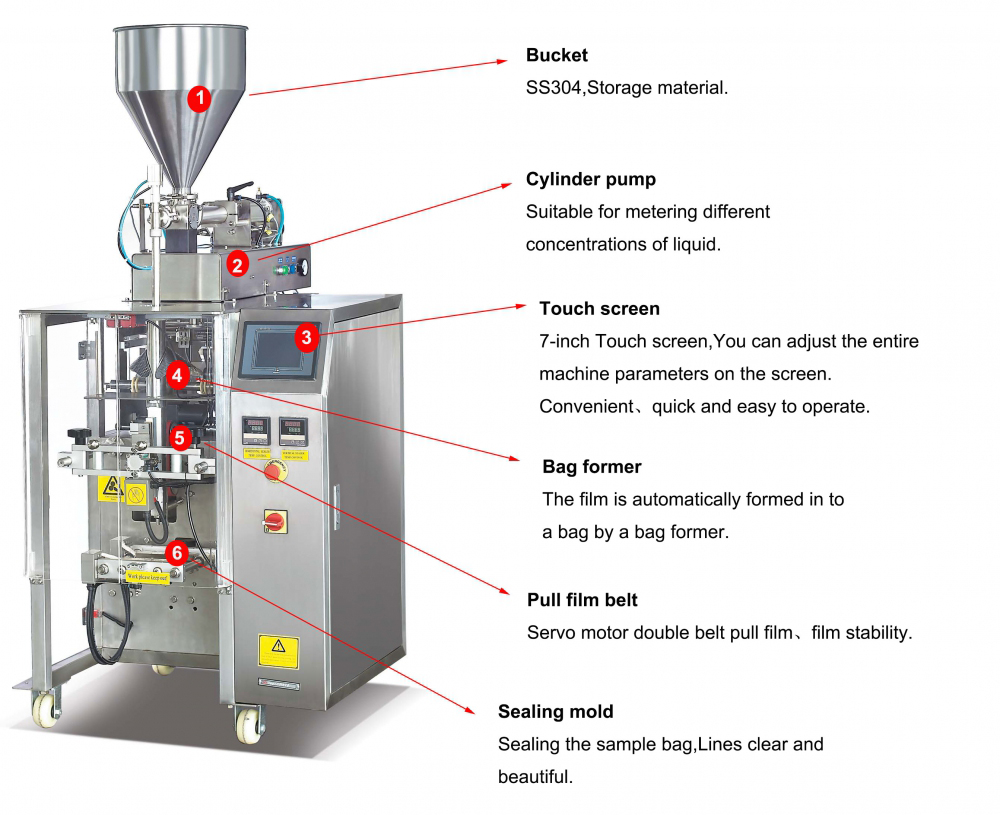

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Weight checker
  • Metal detector
  • Ribbon printer
