Premade Pouch Fill Seal Packaging Line for Dry Free Flowing Products

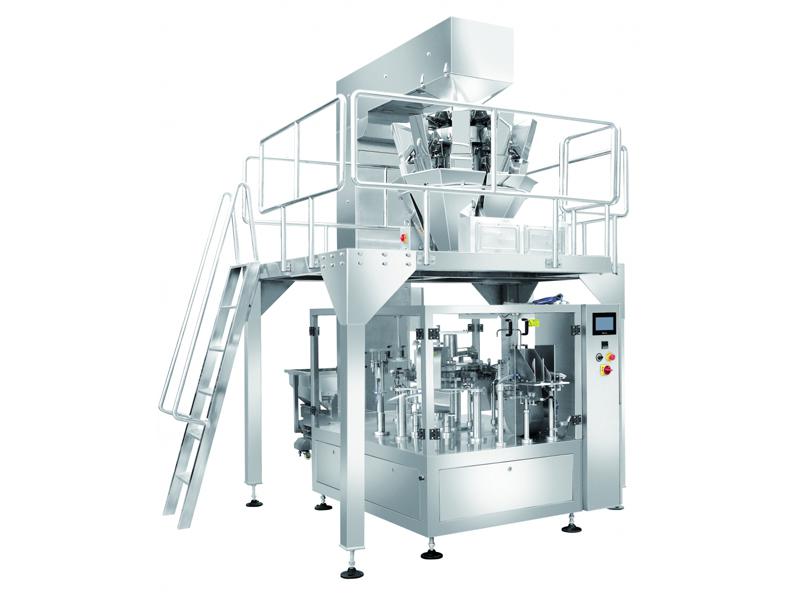

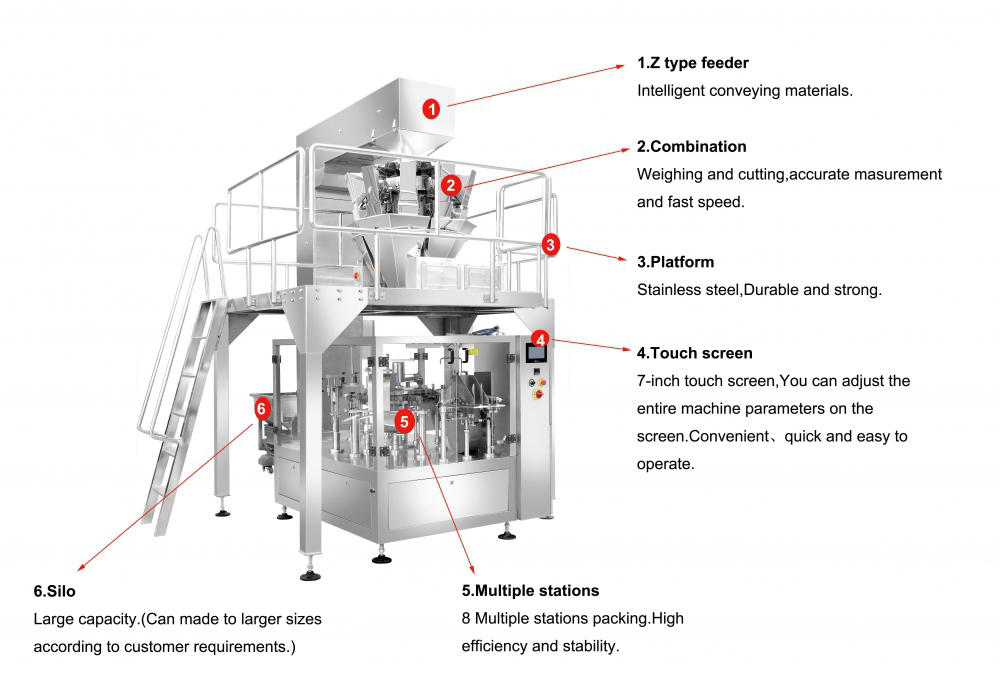

Our premade pouch fill seal packaging line for dry free flowing products fills the products into the premade bags and then seals the package. This packaging line is used in conjunction with a multihead weigher, capable of packaging candy, nuts, raisin, peanuts, melon seeds, potato chips, chocolate and other large granules, as well as the irregular products.
Packaging process
Pouch feeding
pouch top opening and pouch bottom opening
filling and consolidating
product settling
heat sealing
finished package discharging
Stand-up pouch
Zipper pouch
3 side seal pouch
Paper bag
PA/PE, PET/PE, aluminum film and other heat sealable film.
Parameters| Equipment Model | MK6-200 | MK8-200 | MK6-300 | MK8-300 |
| Equipment Material | 304 Stainless Steel | |||
| Pneumatic Component | SMC, AirTAC | |||
| Vacuum Component | Vacuum Generator(SMC) | Vacuum Pump(ORION) | ||
| Drive Mode | Frequency conversion motor drive | |||
| Measuring Type | Multihead Computer Weigher | |||
| Operation Interface | Touch Screen(Double Language:Chinese and English) | |||
| Bag Materials | Bag Materials: Heat sealable film such as PA/PE、PET/PE、AL film etc. | |||
| Bag Size | W:70~200mm L:100~300mm (Date coding requires≥140mm length) | W:160~270mm L:100~400mm (Date coding requires≥140mm length) | W:160~300mm L:100~400mm (Date coding requires≥140mm length) | |
| Filling Range | 5~1500g | 5~2500g | ||
| Packing Speed | 20~55bags/min(depended on the product and filling weight) | 10~40bags/min(depended on the product and filling weight) | ||
| Package Accuracy | Error≤±1% | |||
| Weight | 800kg | 1000kg | 1500kg | 2000kg |
| Dimension | 1475mm*1325mm*1480mm (L*W*H) | 1635mm*1455mm*1480mm (L*W*H) | 1585mm*1545mm*1600mm (L*W*H) | 1645mm*1645mm*1640mm (L*W*H) |
| Total Power | 1.5kw | 2.3kw | 4kw | |
| Driving Power Source | 380V Three-phase Five-line 50HZ | |||
| Control Power Source | DC24V | |||
| Compress air requirement | ≥0.45m³/min(Compress air is provided by user) | ≥0.35m³/min(Compress air is provided by user) | ||
- Convenient operation: PLC control and human-computer interface operating system allow for intuitive and simple operation.
- Convenient adjustment: it takes only 10 minutes to change different materials.
- High automation: automatic weighing, packaging and failure alarm minimizes labor cost.
- Inspection system: Intelligent inspection to check whether the bag is fully opened. No filling and no sealing without right fill weight, saving bags and materials, as well as cost.
- Sanitary safety: Stainless steel made packaging parts ensures product cleanness and safety, in line with GMP standard.
- Dust-proof and waterproof: washing with water offers simple cleaning and increased life span.
- Packaging line feeder
- Metal detector
