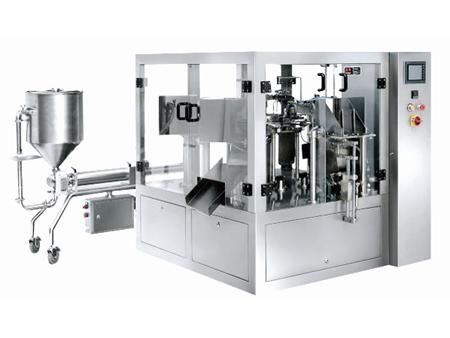

Premade Pouch Fill Seal Packaging Line for Liquid Products
The premade pouch fill seal packaging line for liquid products should be used together with a liquid pump. This packaging line is specially designed for the automatic packaging of liquids or sauces, such as hand washing, laundry detergent, tomato sauce, chilli sauce and so on.
Bag materials
PA/PE、PET/PE、aluminum film and other heat sealable films.
Packaging bag styles
Stand-up pouch
Top handle pouch
3 side seal pouch
Paper bag
| Equipment Model | MK6-200 | MK8-200 | MK6-300 | MK8-300 |
| Equipment Material | 304 Stainless Steel | |||
| Pneumatic Component | SMC, AirTAC | |||
| Vacuum Component | Vacuum Generator (SMC) | Vacuum Pump (ORION) | ||
| Drive Mode | Frequency conversion motor drive | |||
| Measuring Type | Liquid Filler, Peristaltic Pump, Draw-off Pump | |||
| Operation Interface | Touch Screen (Double Language: Chinese and English) | |||
| Bag Materials | Heat Sealable film as PA/PE、PET/PE、AL film etc. | |||
| Bag Size | W:70~200mm L:100~300mm (Date coding requires≥140mm length) | W:160~270mm L:100~400mm (Date coding requires≥140mm length) | W:160~300mm L:100~400mm (Date coding requires≥140mm length) | |
| Filling Range | 5~1500g | 5~2500g | ||
| Packing Speed | 20~55bags/min(depended on the product and filling weight) | 10~40bags/min(depended on the product and filling weight) | ||
| Package Accuracy | Error≤±1% | |||
| Weight | 800kg | 1000kg | 1500kg | 2000kg |
| Dimension | 1475mm*1325mm*1480mm (L*W*H) | 1635mm*1455mm*1480mm (L*W*H) | 1585mm*1545mm*1600mm (L*W*H) | 1645mm*1645mm*1640mm (L*W*H) |
| Total Power | 1.5kw | 2.3kw | 4kw | |
| Driving Power Source | 380V Three-phase Five-line 50HZ | |||
| Control Power Source | DC24V | |||
| Compress air requirement | ≥0.45m³/min (Compress air is provided by user) | ≥0.35m³/min (Compress air is provided by user) | ||

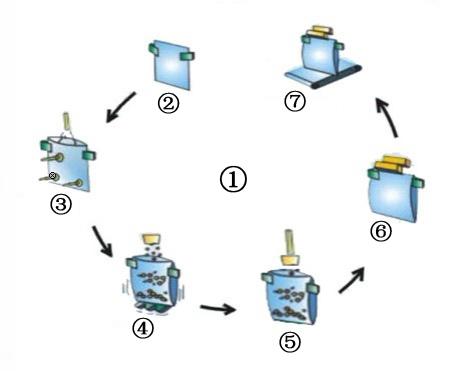

- Six stations
- Bag feeding
- Bag opening
- Bag filling and consolidating
- Product settling
- Heat sealing
- Finished package discharging
- Convenient operation: PLC control and human-computer interface operating system allow for intuitive and simple operation.
- Convenient adjustment: it takes only 10 minutes to change different materials.
- High automation: automatic weighing, packaging and failure alarm minimizes labor costs.
- Inspection system: Intelligent inspection to check whether the bag is fully opened. No filling and no sealing without right fill weight, saving bags and materials, as well as cost.
- Sanitary safety: Stainless steel made packaging parts ensures product cleanness and safety, in line with GMP standard.
- Dust-proof and waterproof: washing with water offers simple cleaning and increased life span.
- Packaging line feeder
- Weight checker
- Metal detector
