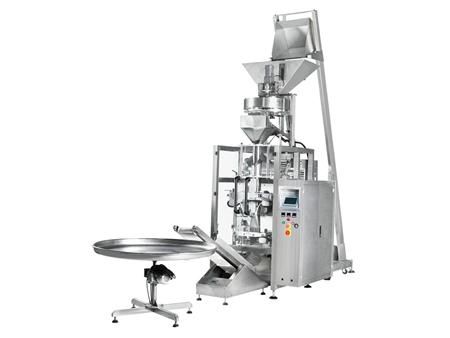

Type MK-420B Automatic Vertical Form Fill Sealing for Granular Products

Type MK-420B automatic vertical form fill sealing for powdered products consists of the vertical bagger, cup filler and single bucket elevator. Mingke pack produces this packaging line to handle fine and uniform powdered products with a diameter smaller than 20mm like white sugar, laundry detergents, etc. Due to the limited weight adjusting range, this packaging machine is generally used for the packaging of single product and single weight.
Packaging materials

OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.

Packaging bag styles
  • Flow pack wrappingFlow pack wrapping
  • Hang hole bagHang hole bag
  • Gusset bagGusset bag
Parameters
  • Type: 420B
  • Packing speed: 10-50bags/min
  • Bag size: L: 50-300mm W: 80-200mm
  • Measuring range: 150-1500ml
  • Max film width: 420mm
  • Film thickness: 0.04-0.10mm
  • Air consumption: 0.4m³, min 0.6MPa
  • Power source：2.5KW/220V 50-60Hz
  • Weight: 760kg
  • Overall size: L1400xW970xH3000m
Features
  • Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.
  • High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
  • Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mould is equipped to ensure firm sealing.
  • With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.

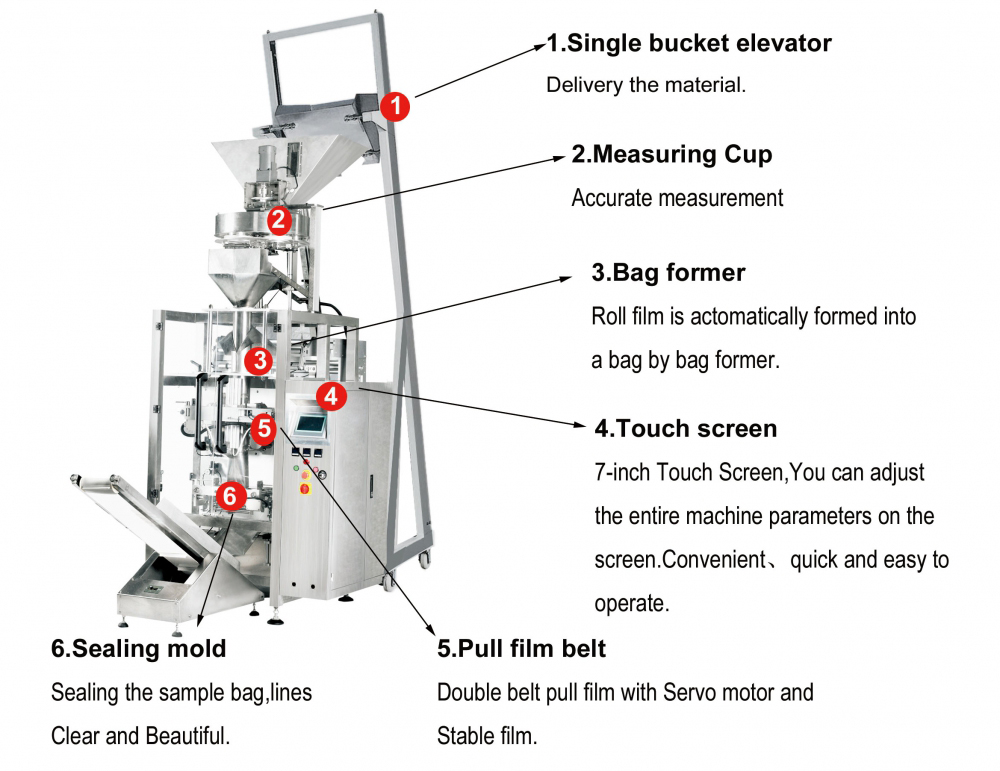

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Weight checker
  • Metal detector
  • Ribbon printer
