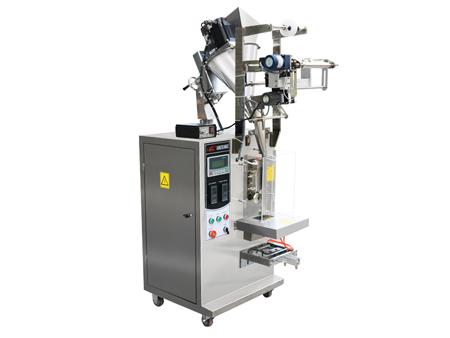

Vertical Form Fill Seal Machine, MK-60FB Packaging Machinery

The MK-60FB vertical form fill seal machine features high automation and is capable of forming a bag, filling it with the product, weighing, sealing, cutting, counting, code printing, finished package discharging, etc. This packaging machinery supports a wide range of bag styles like central seal, hang hole, stick sachets and so on. It is ideally suitable for automatically packaging -100 mesh powdered products, including power milk, ground coffee, white sugar and so on.
Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag styles

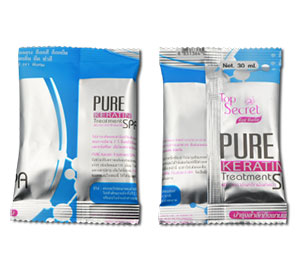

  • Back seam bagBack seam bag

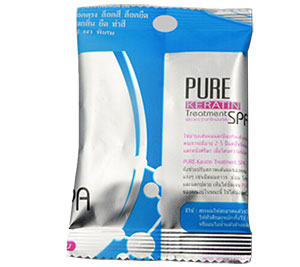

  • Hang hole bagHang hole bag

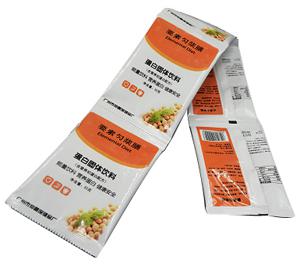

  • Strip sachetsStrip sachets
Parameters
  • Type: MK-60FB
  • Packing speed: 30-60bags/min
  • Bag size: L:40-160mm W:30-110mm
  • Measuring range: 0.5-80ml (optional screw feeder depending on the packaging products)
  • Max film width: 240mm
  • Sealing type: back seal
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 250kg
  • Overall size: 800x700x1600mm

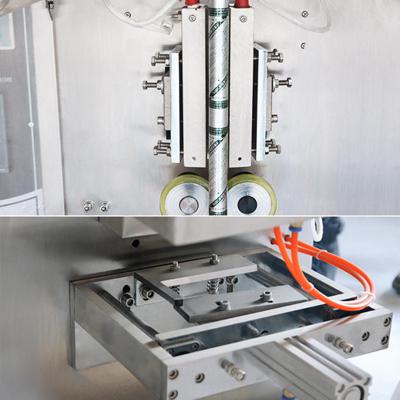

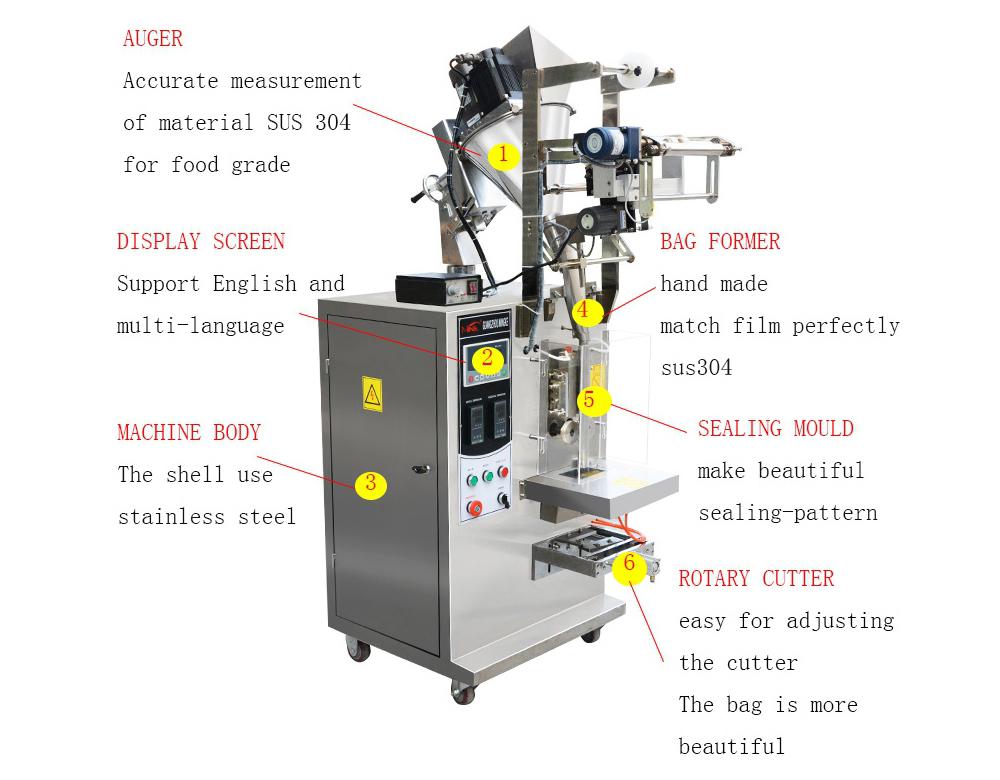

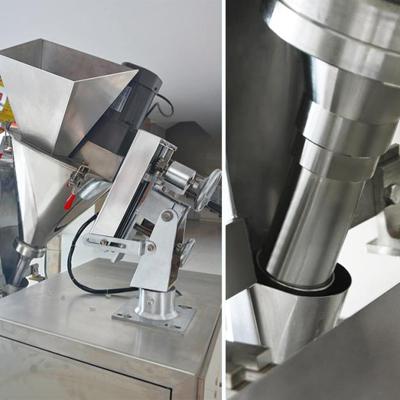

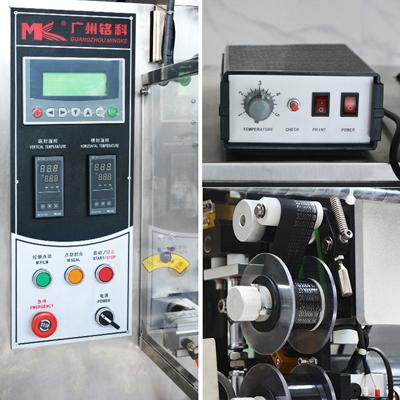

Structural and detail drawings
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Ribbon printer
  • Thermal transfer printer
