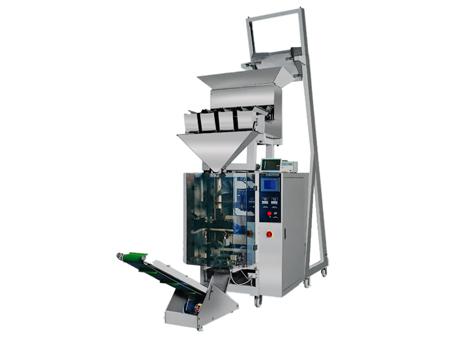

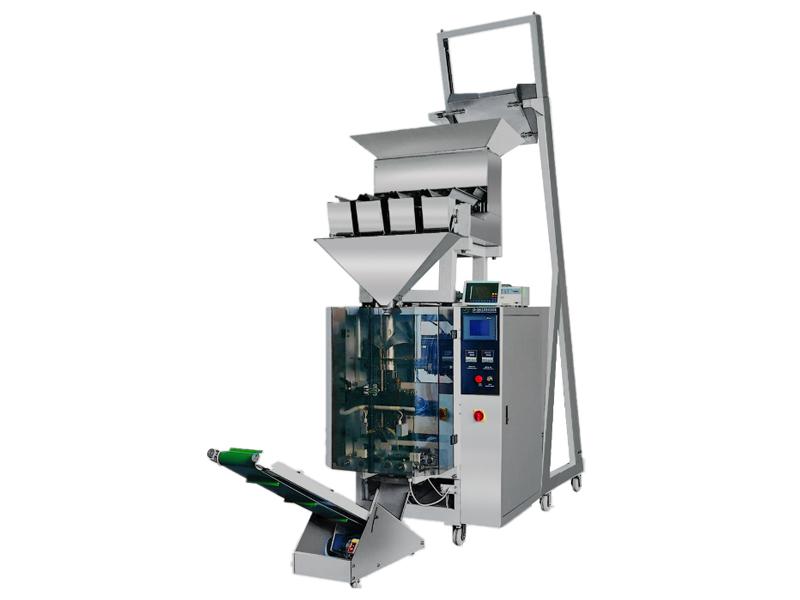

Type MK-420E Vertical Packaging Line with Linear Weigher

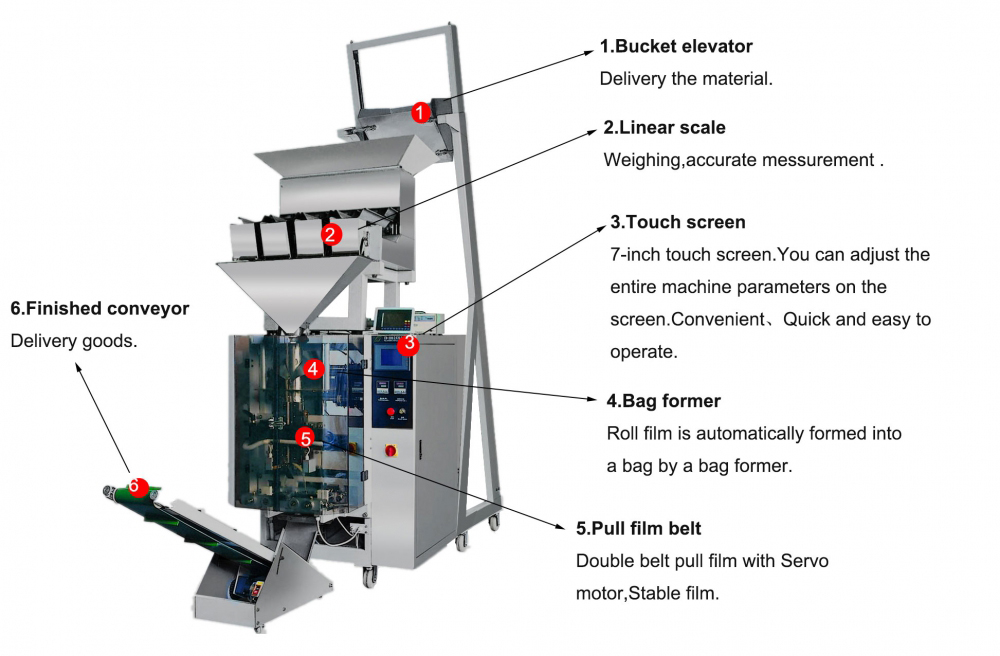

The Type MK-420E vertical packaging line with linear weigher is an automatic packaging machine integrating a vertical bagger, linear weigher and single bucket elevator. This packaging line features convenient packaging products changeover and product fill weight adjusting, applicable to the packaging of blended powdered products. It can process the heat-sealable film into bags with a width less than 20cm for the packaging of granules like white sugar, washing powder, seed and much more.
OPP/CPP composite film, OPP/CE composite film, MST/PE composite film, PET/PE composite film, aluminum foil.
- Flow pack wrapping
- Hang hole bag
- Gusset bag
- Type: MK-420E
- Packing speed: 30-50bags/min
- Bag size: L:50-300mm W:80-200mm
- Measuring range: 150-1500ml
- Max film width: 420mm
- Film thickness: 0.04-0.10mm
- Air consumption: 0.4m³、min 0.6MPa
- Power source: 2.5KW/220V 50-60Hz
- Weight: 960kg
- Overall size: L1400xW970xH3000mm
- Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.
- High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
- Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mould is equipped to ensure firm sealing.
- With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.
- Packaging line feeder
- Finished package conveyor
- Weight checker
- Metal detector
- Ribbon printer
