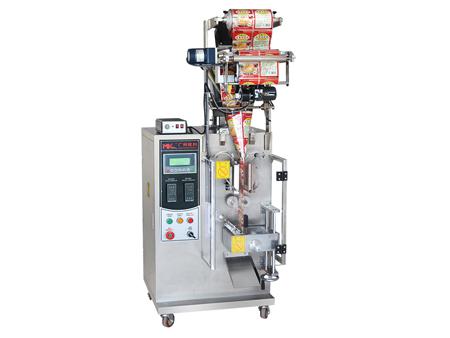

Vertical Form Fill Seal Machine, MK-60FZ Packaging Equipment

The MK-60FZ vertical form fill seal machine is equipped with an auger filler for the fully automatic packaging of -100mesh powdered products, such as milk powder, albumen powder, ground coffee, etc. This packaging equipment produces 3 side seal pouches, 4 side seal pouches, round hang hole bags, strip sachets, etc.
Packaging materials

Composite film/ polyethylene, polyester/aluminum foil/ polyethylene, nylon/ polyethylene, tea filter paper, etc.

Bag Styles
  • 3-side seal bag3-side seal bag
  • 4 side seal bag4 side seal bag
  • Hang hole bagHang hole bag
  • Stick sachetsStrip sachets
Optional configuration
Parameters
  • Type: MK-60FZ
  • Packing speed: 30-60bags/min
  • Bag size: L: 40-140mm W: 30-110mm
  • Measuring range: 0.5-80ml (optional screw filler depending on items)
  • Max film width: 220mm
  • Sealing type: 3 side seal or 4 side seal
  • Power source: 1200W/ 220V、380V/ 50-60Hz
  • Weight: 230kg
  • Overall size: 800x700x1600mm

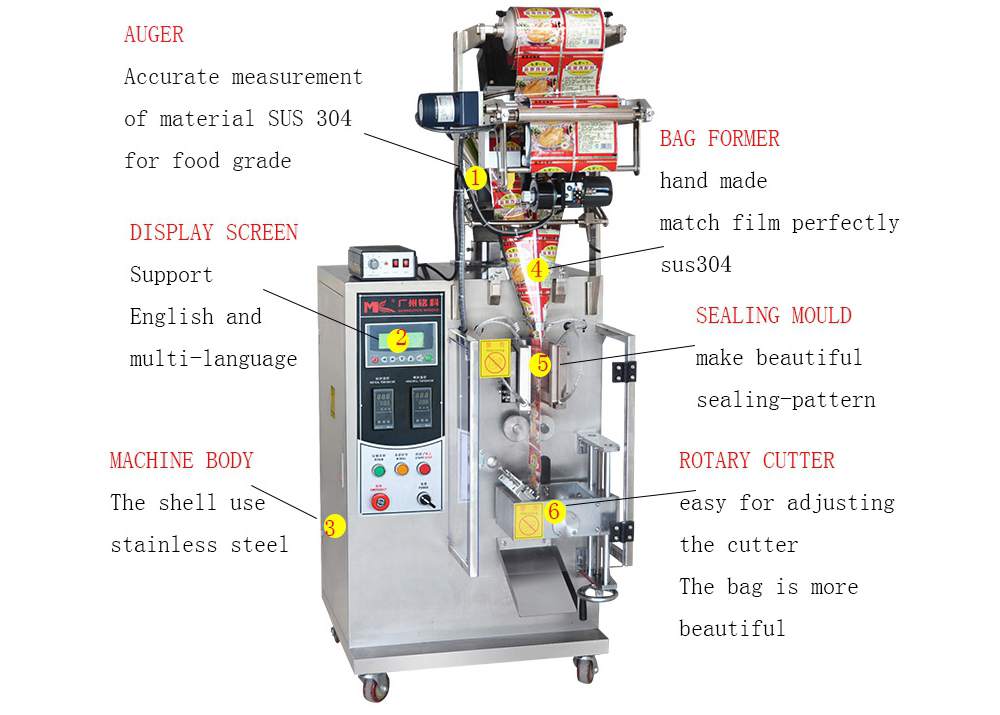

Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Weight checker
  • Ribbon printer
  • Thermal transfer printer
