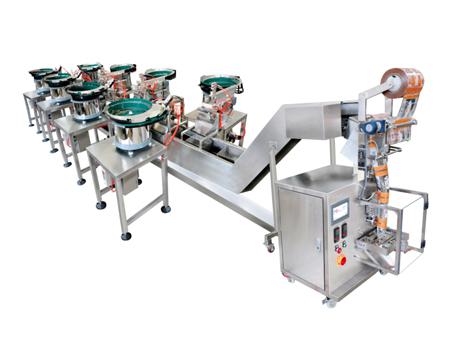

Vertical Form Fill Seal Machine, MK-LS8 Counting Packaging System

The MK-LS8 vertical form fill seal machine is equipped with 8 vibration bowl feeders, making it suitable for the mixed packaging of as many as 8 different fitting and part materials. Mingke Pack has customization services as well for customers to make use of in the packaging of irregular shapes.
Packaging bag materials

OPP/CPP、PET/PE and other heat sealable film, PE film

Bag styles

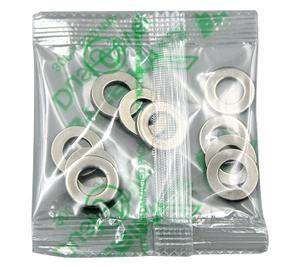

  • Back seam bagBack seam bag

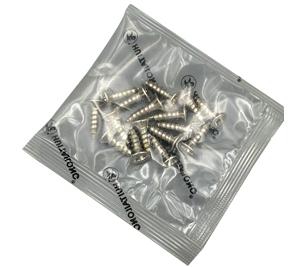

  • 3-side seal3-side seal
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS8
  • Max film width: 320mm (optional 220, 420, 520, 620, 720)
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 4.5KW
  • Packing speed: 5-30bags/min (depending on packaged products)
  • Bag size: L:40-200mm W:20-150mm
  • Film thickness: 0.04-0.08mm
  • Air consumption: 0.6m³/min 0.6-0.8MPa
  • Weight: 1350kg
  • Overall size: 6500x1400x1750mm (depending on the packaged products)

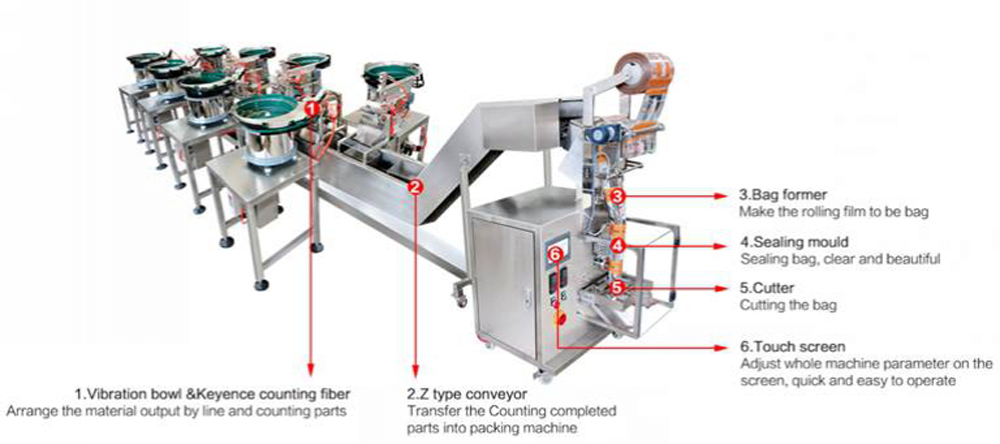

Structural drawing
Weighing options
  • Vibration bowl feeder + slideway: for packaging screw within 5 pieces or hanging materials, adopting travel counting.
  • Vibration bowl + transverse feeding slideway + counting fiber: is ideal for counting screws with large quantity or the suspensible items.
  • Vibration bowl + counting fiber: suit to the counting of hardware or plastic parts without screw cap or non-hanging or the irregular products.
 Additional Options
  • Storage hopper
  • Finished Package Conveyor
  • Weight Checker
  • printer
