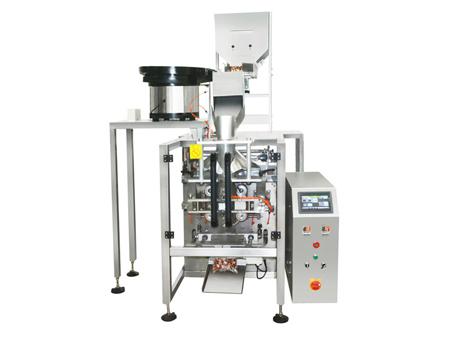

Vertical Form Fill Seal Machine, MK-LS-420E Weighing Packaging Equipment

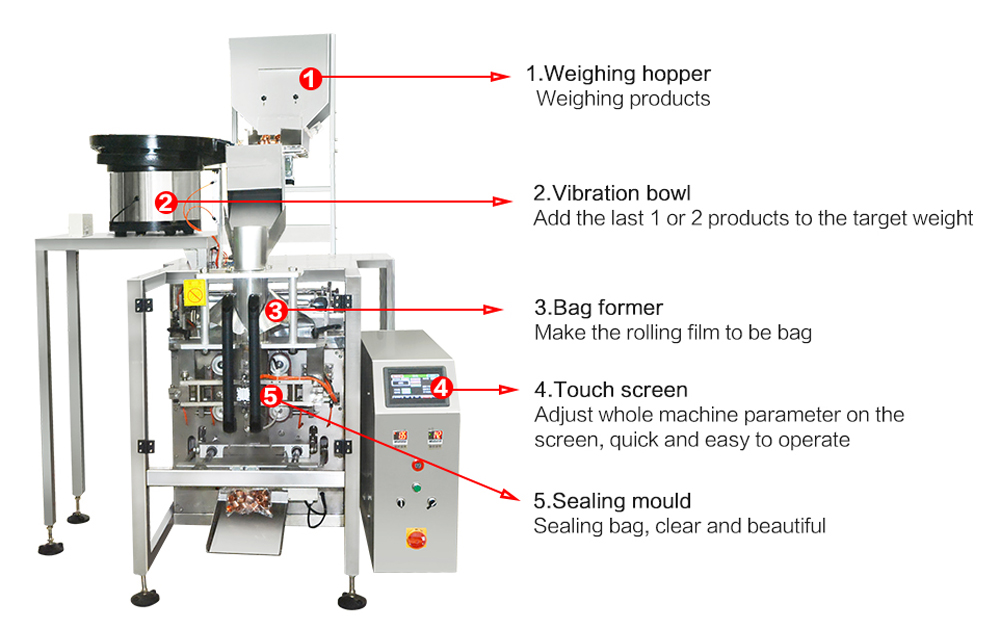

The MK-LS-420E vertical form fill seal machine is specially designed for packaging heavier hardware screws. It utilizes a mixed weighing method of a weighing hopper and vibration bowl counting, with the hopper responsible for weighing the product out for a near target weight, and the vibration bowl feeder used for secondary weighing and adding 1 to 2 products to the target weight. This ensures the weighing accuracy and packaging speed. The V shaped vibration bowl is adaptable to a variety of items, giving it an excellent compatibility and allowing it to meet most material packaging requirements. In addition, the vibration bowl interior is coated in a polyurethane (PU) adhesive in order to significantly reduce noise levels.
Packaging materials

OPP/CPP、PET/PE and other heat sealable film, PE film

Bag styles

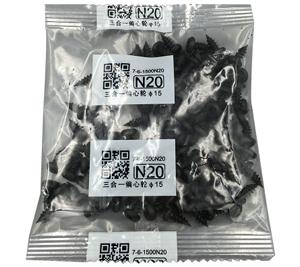

  • Flow pack wrappingBack seam bag
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS-420E
  • Max film width: 420mm
  • Measuring range: 1-5000g (changing the weigher depending on the packaged items)
  • Packing speed: 2-10bags/min (depending on packaged products)
  • Bag size: L:60-300mm W:80-200mm
  • Film thickness: 0.04-0.08mm
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 3400W
  • Air consumption: 0.4m³/min 0.4-0.6MPa
  • Weight: 550kg
  • Overall size: 1200x1500x2300mm (depending on packaged products)
Structural drawing
Additional Options
  • Finished package conveyor
  • Ribbon printer
  • Weight Checker
