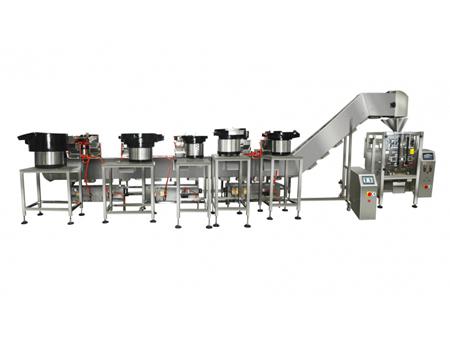

Vertical Form Fill Seal Machine, MK-LS10 Counting Packaging Machinery

The MK-LS10 vertical form fill seal machine utilizes 10 vibration bowl feeders so that it offers a mixed counting packaging of up to 10 materials, including hardware screws, electronic elements, bicycle accessories and other irregular products. The stable and durable vibration bowl, when paired with a KEYKENCE counting fiber, results in a counting accuracy of 1/1000-1/3000. Controlled by an automatic frequency controller, the vibration frequency of the vibration bowl automatically adjusts with the material weight, thus ensuring smooth conveying to enhance the weighing accuracy.
Packaging materials

OPP/CPP、PET/PE and other heat sealable film, PE film

Bag styles

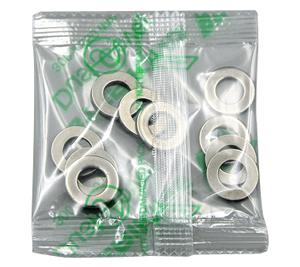

  • Back seam bagBack seam bag

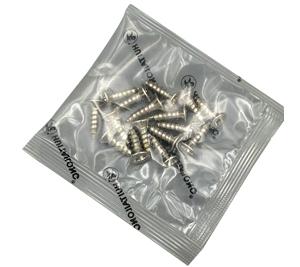

  • 3-side seal3-side seal
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS10
  • Max film width: 420mm (optional 220, 420, 520, 620, 720)
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 5.5KW
  • Packing speed: 5-30bags/min (depending on packaged products)
  • Bag size: L:60-300mm W:80-200mm
  • Film thickness: 0.04-0.08mm
  • Air consumption: 0.6m³/min 0.6-0.8MPa
  • Weight: 1550kg
  • Overall size: 7500x1400x1750mm (depending on packaged products)

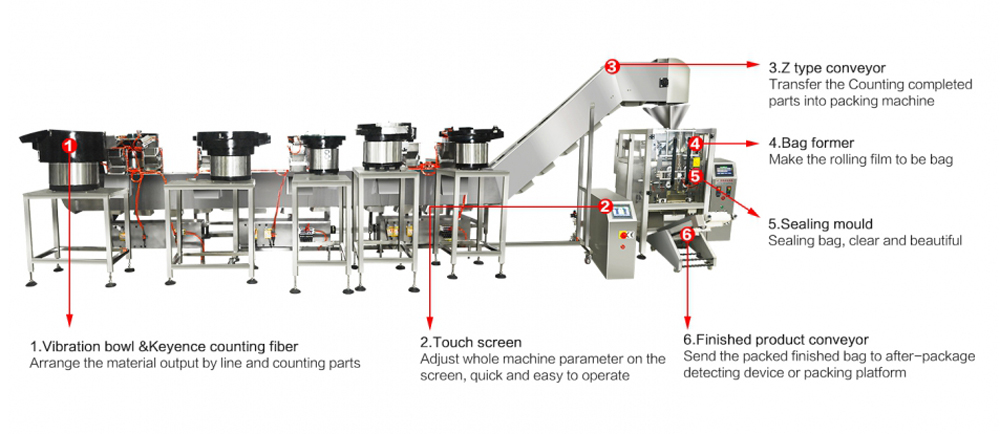

Structural drawing
Weighing options
  • Vibration bowl feeder + slideway: for packaging screw within 5 pieces or hanging materials, adopting travel counting.
  • Vibration bowl + transverse feeding slideway + counting fiber: is ideal for counting screws with large quantity or the suspensible items.
  • Vibration bowl + counting fiber: suit to the counting of hardware or plastic parts without screw cap or non-hanging or the irregular products.
 Additional Options
  • Storage hopper
  • Finished package conveyor
  • Weight checker
  • printer
