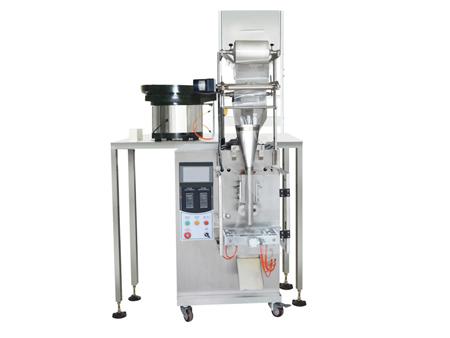

Vertical Form Fill Seal Machine, MK-LS-60E Weighing Packaging Machinery

MK-LS-60E vertical form fill seal machine carries out automatic arrangement, weighing, bag forming, filling, sealing, cutting, and other applications. The applicable maximum film width is 220mm and the weighing range is within 1-200g. This packaging machine is primarily used for packaging of a large quantity of screws.
Packaging materials

OPP/CPP, PET/PE and other heat sealable film, PE film

Bag styles

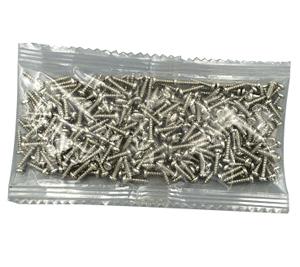

  • Back seam bagBack seam bag
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS-60E
  • Max film width: 220mm
  • Measuring range: 1-200g (changing the weigher depending on the packaging items)
  • Packing speed: 2-10bags/min (depending on packaged products)
  • Bag size: L:40-160mm W:20-100mm
  • Film thickness: 0.04-0.08mm
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 1500W
  • Air consumption: 0.6m³/min 0.6-0.8MPa
  • Weight: 400kg
  • Overall size: 1000x900x1700mm (depending on packaged products)

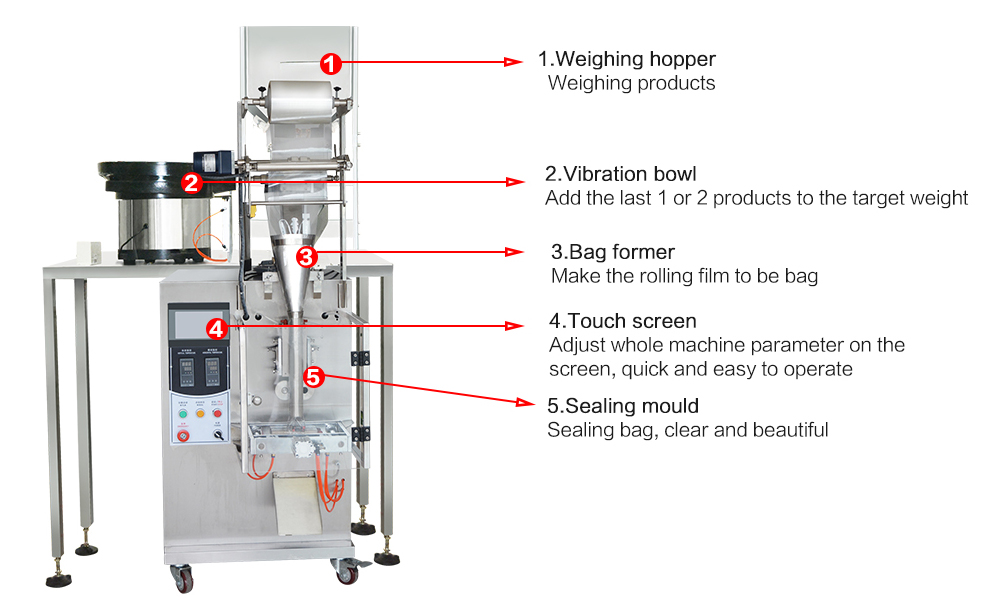

Structural drawing
Additional Options
  • Finished product conveyor
  • Ribbon printer
  • Weight Checker
