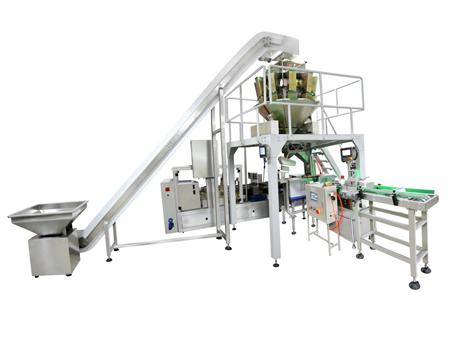

Automatic Form Fill Seal Machine, MK-LS-AB Weighing Packaging Solution
The MK-LS-AB vertical form fill seal machine offers in-box packaging operations, and performs automatic weighing, box opening, filling products, and package sealing. With a high degree of automation, labor costs are significantly reduced, and a multi-head weigher is used to accommodate packaging of single hardware fittings in large amounts or heavy weights, such as screws, nuts, or eccentric wheels. The filling weight is freely adjustable according to customer requirements, thus meeting customer needs for handling different materials within the packaging machine.
Packaging sample
Parameters
- Type: MK-LS-AB
- Packing speed: 14 boxes/min
- Box type: thickness≥300g/m2, automatic bottom forming, tuck-in-flap sealing type
- Power source: 110V/220V/380V 50HZ/60HZ
- Power: 6.5KW
- Air consumption: 0.6m³/min 0.5-0.8MPa

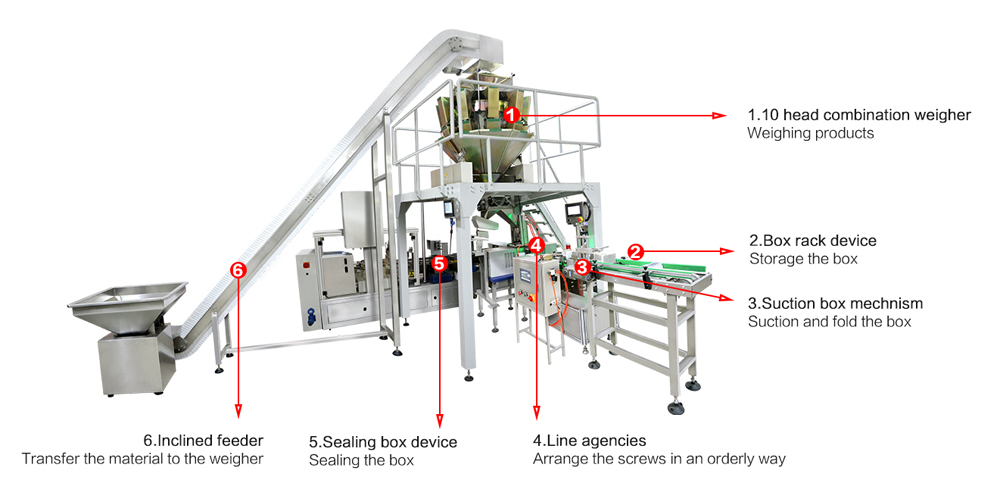

Structural drawing
