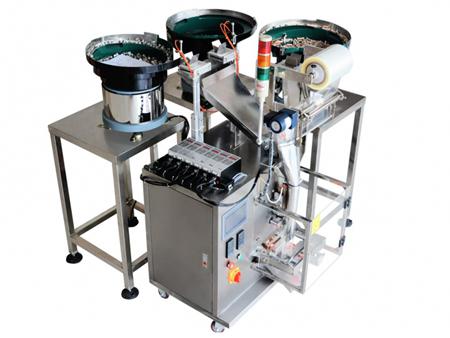

Vertical Form Fill Seal Machine, MK-LS3 Counting Packaging Equipment

The MK-LS3 vertical form fill seal machine is designed with three vibration bowl feeders, making it applicable to the mixed counting packaging of as many as three different items, such as irregular hardware fittings, plastic parts and more.
Packaging bag materials

OPP/CPP、PET/PE and other heat sealable film, PE film

Bag styles

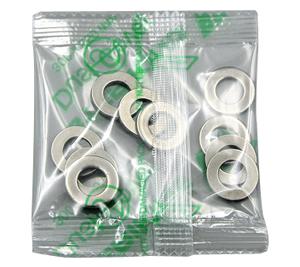

  • Back seam bagBack seam bag

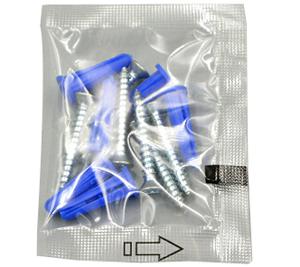

  • 3-side seal3-side seal
  • Strip sachetsStrip sachets
Parameters
  • Type: MK-LS3
  • Max film width: 220mm (optional 320, 420, 520, 620, 720)
  • Voltage: 110V/220V/380V 50HZ/60HZ
  • Power: 2500W
  • Packing speed: 5-50bags/min (depending on packaging products)
  • Bag size: L:40-160mm W:20-100mm
  • Film thickness: 0.04-0.08mm
  • Air consumption: 0.4m³/min 0.4-0.6MPa
  • Weight: 550kg
  • Overall size: 1200x1400x1750mm (depending packaging products)

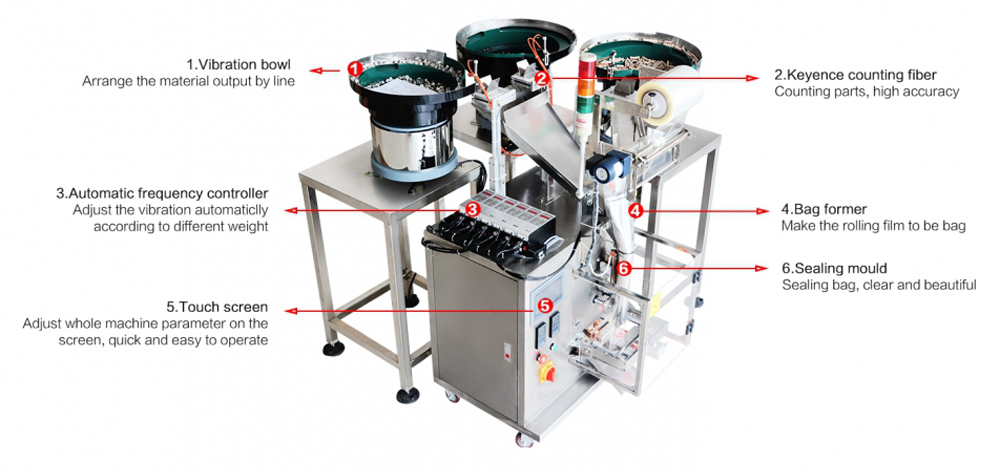

Structural drawing
Weighing options
  • Vibration bowl feeder + slideway: for packaging screw within 5 pieces or hanging materials, adopting travel counting.
  • Vibration bowl + transverse feeding slideway + counting fiber: is ideal for counting screws with large quantity or the suspensible items.
  • Vibration bowl + counting fiber: suit to the counting of hardware or plastic parts without screw cap or non-hanging or the irregular products.
 Additional Options
  • Storage hopper
  • Finished Package Conveyor
  • Weight Checker
  • Weight Checker
